The C12.9 marine propulsion engine is ideal for high performance marine applications including yachts, fishing vessels, military vessels, governmental vessels and various other commercial high performance marine applications. The C12.9 is designed to be integrated with both the Cat Three60 Precision Control shaft line maneuvering and engine control solution as well as other marine industry throttle controls. The electronically-controlled C12.9 is offered in two power ratings: 850 mhp at 2300 rpm and 1000 mhp at 2300 rpm. Both ratings meet EPA Tier 3, IMO II, EU Recreational Craft Directive and EU Stage IIIA regulations. In addition to high power density, the C12.9 offers high torque at low engine speeds and fast acceleration throughout the entire engine speed range due to its air system design of integrated series turbochargers and a supercharger.

Building on the durability and reliability of the C280 engine platform, Caterpillar is pleased to offer the IMO II compliant C280 engine line. The core components are the same as the existing C280, including the latest in EUI fuel system capabilities and state-of-the-art ADEM™ A3 Electronic Control Unit (ECU) features. Caterpillar® products continue to deliver more available power while delivering outstanding fuel efficiency. You can also count on long maintenance intervals and worldwide Caterpillar parts and service availability.

Informações Tećnicas Maximum Rating: 994 bkW Minimum Rating: 234 bkW Aspiration: Turbocharged-aftercooled aspiration Mais informações Power Rating Minimum Rating: 234 bkW / 314 BHP Maximum Rating: 994 bkW / 1333 BHP Engine Specifications Aspiration: Turbocharged-aftercooled aspiration Bore: 145 mm / 5.71 in Configuration: Vee 12, 4-stroke-cycle diesel Displacement: 32.1 l / 1959 in³ Rotation: Counterclockwise from flywheel end Stroke: 162 mm / 6.38 in Emissions: U.S. EPA Tier 3 / IMO II emissions certified Cooling: Heat exchanger or keel cooled Flywheel Housing: SAE No. 0 with SAE No. 18 flywheel (136 teeth) Governor: Electronic (A4 ECM) Oil Change Interval: 750...

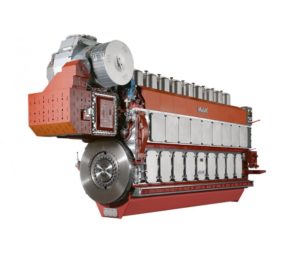

The M 25 C, part of the MaK long-stroke engine generation, is based on the proven design characteristics of the M 20 C, M 32 C and M 43 C engine series. When developing this new engine generation, the objective was to achieve a high benefit level for the customer. In all design and development considerations, therefore, three criteria had the highest priority: reliability, economy and environmental compatibility. Other points of significance in the engine's design and development work were ease of maintenance, long maintenance intervals, long component life and ease of installation.

The new VM 32 E engine is designed for our offshore customers seeking the greatest reliability and durability in combination with stability at high power output. The VM 32 E engine extends the output range of our recently announced M 32 E in-line engine above 5 MW and stands out with the same superior serviceability and long maintenance intervals. Additional properties of the VM 32 E are power output of 560 kW/cylinder, 100% PTO capability and a large portfolio of application-driven options. The VM 32 E has an improved power to weight ratio. It is the best solution for engine rooms that occupy fewer frames. Besides, the VM 32 E is a SCR, ready for the new Cat® SCR System to fulfill IMO III exhaust gas emissions.

The 3508C marine propulsion engine meets IMO II emissions regulation and delivers more power with lower emissions for your marine propulsion needs. Additionally, the 3508C provides outstanding fuel efficiency and lube oil consumption. Standard or reverse rotation options are available as well as worldwide parts and service. The 3500 engine platform is a streamlined and proven design that provides industry-leading reliability & durability.

The C175-16 is the first Cat marine engine with core ACERTTM Technology, designed and built from the ground up. This offers maximum performance along with EPA Marine Tier 3 and IMO Tier II emissions compliance with no aftertreatment. With unrestricted continuous and heavy-duty ratings, you get morepower with plenty of room for growth, so you maximize productivity while minimizing cost of ownership. With a bore of 175 mm (6.9 in) and a stroke of 220 mm (8.66 in), the C175-16 is highly efficient while providing increased propulsion output in a high speed engine platform. Additional features include: Turbocharged and aftercooled aspiration, MCS approved monitoring, alarm, and protection system. Cross-flow head design, simplified electrical system. The C175-16 is backed by a Caterpillar warranty and the best service network in the industry. The global Cat dealer network means customers can count on the service and support they need for their marine engines no matter where their vessel is located.

Informações Tećnicas Maximum Rating: 1820 ekW (2275 kVA) Minimum Rating: 1760 ekW (2200 kVA) Frequency: 50 Hz or 60 Hz Mais informações Generator Set Specifications Minimum Rating: 1760 ekW (2200 kVA) Maximum Rating: 1820 ekW (2275 kVA) Frequency: 50 Hz or 60 Hz Speed: 1000 rpm (50 hz) or 900 rpm (60 hz) Emissions/Fuel Strategy: EPA Tier 2, IMO II Engine Specifications Aspiration: Turbocharged-Aftercooled Bore: 280 mm / 11 in Stroke: 300 mm / 11.8 in Displacement: 111 l / 6773 in³ Governor Type: Electronic Fuel System: EUI Compression Ratio 50 Hz: 13.1 Compression Ratio 60 Hz: 13:1 Engine Model:...

Informações Tećnicas Rated Engine Speed: 1600-2150 rpm Emissions: U.S. EPA Tier 4 Final certified IMO III emissions certified (SCR required) Mais informações Clean Emissions Module (CEM) - Dimensions 6 Brick Z-Flow - Length: 3751 mm / 147.7 in 6 Brick Z-Flow - Height: 597 mm / 23.5 in 6 Brick Z-Flow - Width: 1106 mm / 43.5 in 6 Brick Z-Flow - Weight: 565 / 1246 lb 6 Brick U-Flow - Length: 2159 mm / 85 in 6 Brick U-Flow - Height: 597 mm / 23.5 in 6 Brick U-Flow - Width: 1445 mm / 56.9 in 6 Brick U-Flow...

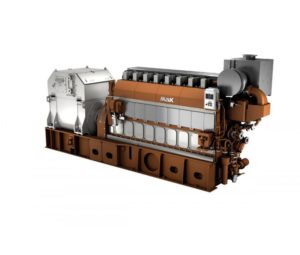

The complete diesel generator set is notable for its ease of installation, reliable operation, ease of maintenance and good component accessibility. The basis is formed by the rigid base frame as a foundation of the engine and alternator with an integrated oil sump, large oil volume and universal equipment for both HFO and MDO operation. The M 25 C has a wide range of application providing power for the continuous generation of electricity where a high level of reliability is important. The power range of the M 25 C engine series as a generator unit varies from 2,140 to 3,560 kVA.

The VM 32 E is available as a generator set with a new “flexibly-mounted engine on base frame” design and a wet oil sump solution with a resilient mounting for generator set applications without base frame. In this design, the engine is resiliently mounted on the base frame with conical mounts. The base frame itself is reduced in weight and height to make transport and handling during the installation phase easier. Last but not least, the ship's weight and design will benefit from the lower weight and the smaller dimensions for its entire lifetime, especially on smaller ship applications. The generator is mounted on non-resilient adjustable spacers, which is the most economical way to establish a perfect mounting plane and allows an easy realignment of the generator. As the wet oil sump, the reduced vibration levels will help the crew sleep well during their off shift while the engine is running.

Informações Tećnicas Maximum Rating: 1700 eKW (2125 kVA) Minimum Rating: 1550 eKW (1937 kVA) Frequency: 60 hz Mais informações Generator Set Specifications Minimum Rating: 1550 eKW (1937 kVA) Maximum Rating: 1700 eKW (2125 kVA) Frequency: 60 hz Speed: 1800 Engine Specifications Configuration: Vee 12 4-Stroke-Cycle Diesel Aspiration: TTA Bore: 170 mm / 6.7 in Stroke: 215 mm / 8.46 in Displacement: 58.56 l / 3574 in³ Generator Set Configurations Emissions: IMO II Generator Set Dimensions Length: 5085.3 mm / 200.2 in Width: 2142.1 mm / 84.3 in Height: 2131.1 mm / 83.9 in Weight - Estimated: 12762 kg / 28136...
