M 32 E - MOTORES MARÍTIMOS
- ColeçãoMOTORES MARÍTIMOS
Descrição

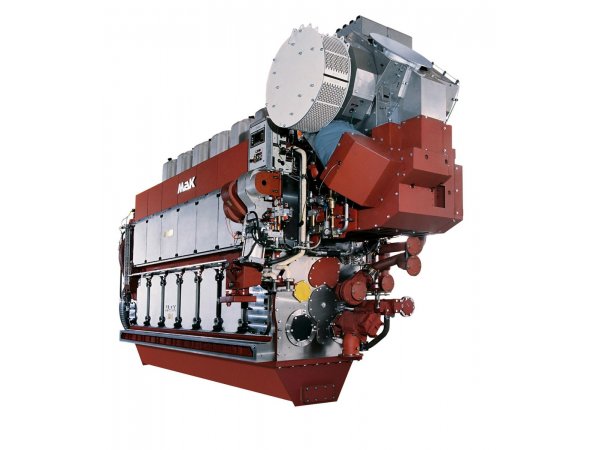

Caterpillar Motoren designed the M 32 E based on the reliable M 32 C engine series. The M 32 E will share the same footprint as the successful M 32 C. The M 32 E is the first MaK 5 MW engine in the 320 mm bore segment. The new design still supports operation at any ambient condition without load reduction.
Informações Tećnicas
- Power Range: 3300 - 4950 kW
- Speed Range: 720-750 rpm
- Emissions: IMO II / IMO III with SCR
Mais informações
Power Rating
- Power Range: 3300 - 4950 kW
Engine Specifications
- Speed Range: 720-750 rpm
- Emissions: IMO II / IMO III with SCR
- Aspiration: Turbocharged
- Bore: 320 mm / 12.6 in
- Stroke: 480 mm / 18.9 in
- Rotation from Flywheel End: Counterclockwise/Clockwise
- Configuration: 6,8,9 Cylinder
- Swept Volume: 37 l / 2257.88 in³
Dimensions & Weights
- Minimum Dry Weight: 37.5 ton (US) / 82673.4 lb
- Minimum Length: 6055 mm / 238.4 in
- Maximum Length: 7850 mm / 309.1 in
- Minimum Height: 3862 mm / 152 in
- Maximum Height: 4406 mm / 173.5 in
- Minimum Width: 2195 mm / 86.4 in
- Maximum Width: 2195 mm / 86.4 in
