C7.1 – MOTORES MARÍTIMOS

  • ColeçãoColeçãoMOTORES MARÍTIMOS
carousel

Descrição

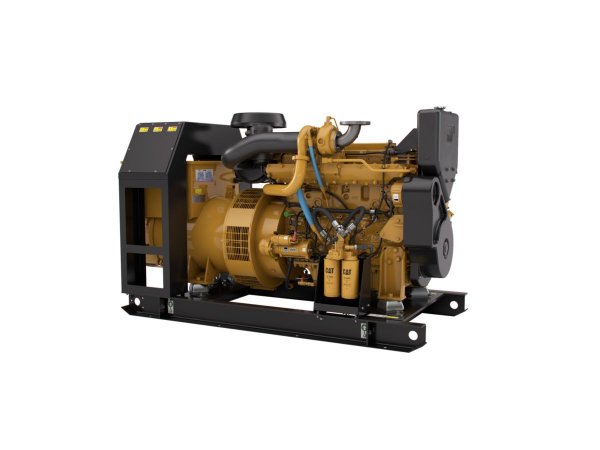

Cat® C7.1 Diesel Marine Generator Set has three phase ratings of 50 Hertz at 100, 118, and 150 ekW with heat exchanger cooling that meet U.S. EPA Tier 3 commercial, IMO II, and EU CC2 emissions standards. The C7.1 also has three phase ratings of 60 Hertz at 118, 150, 175, and 175 ekW with heat exchanger cooling that meet U.S. EPA Tier 3 commercial, IMO II, and EU CC2 emissions standards. C7.1 gen set is available in 12 or 24 volt and this compact package is ideal for a wide range of commercial and pleasure craft applications.

Informações Tećnicas

  • Maximum Rating: 200 ekW (250 kVA)
  • Minimum Rating: 100 ekW (125 kVA)
  • Frequency: 50 Hz or 60 Hz

Mais informações

Generator Set Specifications

  • Minimum Rating: 100 ekW (125 kVA)
  • Maximum Rating: 200 ekW (250 kVA)
  • Frequency: 50 Hz or 60 Hz
  • Speed: 1500 rpm (50 hz) or 1800 rpm (60 hz)
  • Emissions/Fuel Strategy: EPA Tier 3, IMO II, EU CC2

Engine Specifications

  • Engine Model: In-line 6, 4-Stroke-Cycle Diesel
  • Aspiration: TA
  • Bore: 105 mm / 4.13 in
  • Stroke: 135 mm / 5.3 in
  • Displacement: 7.1 l / 433.3 in³
  • Governor Type: Electronic
  • Fuel System: Common Rail Fuel System

Generator Set Configurations

  • Emissions/Fuel Strategy: EPA Tier 3, IMO II, EU CC2

Generator Set Dimensions

  • Width: 956 mm / 37.6 in
  • Height: 1263 mm / 49.7 in
  • Weight: 1652 -1840 kg, 3634-4026 lb
  • Length: 76.2 in/1935 mm (minimum), 83.3 in/2116 mm (maximum)

Generator Specifications

  • Pitch: 2/3
  • Number of Leads: 12
  • Insulation: Class H
  • IP Rating: IP23 Water protection
  • Voltage Regulator: Solid state
