M 32 C – MOTORES MARÍTIMOS

  • ColeçãoColeçãoMOTORES MARÍTIMOS
carousel

Descrição

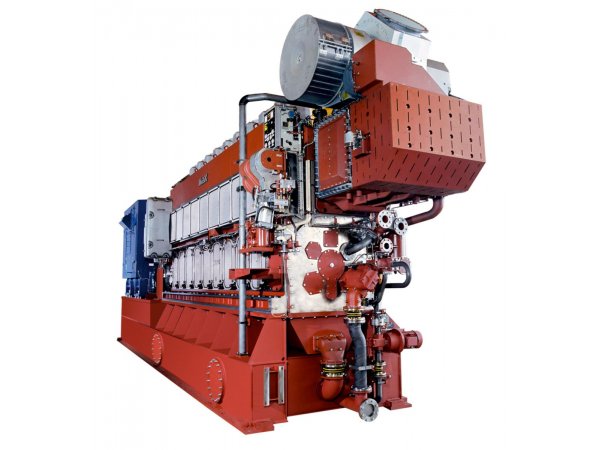

The M 32 C was introduced in 1994 in 6, 8 and 9 cylinder versions and is outstandingly suitable as a generator prime mover for electric power on ships. The robust design and moderate speed permits unlimited, continuous operation with heavy fuel oil. In-line engines – completed with generators – are mounted on a common base frame. The engine and electrics are tested prior to delivery. This ensures trouble-free installation and commissioning.

Informações Tećnicas

  • Maximum Rating: 4316 kWe (5400 kVA)
  • Minimum Rating: 2762 kWe (3456 kVA)

Mais informações

Generator Set Specifications

  • Minimum Rating: 2762 kWe (3456 kVA)
  • Maximum Rating: 4316 kWe (5400 kVA)
  • Emissions/Fuel Strategy: EPA Tier 2 & IMO II

Engine Specifications

  • Configuration: 6,8,9 Cylinder
  • Bore: 320 mm / 12.6 in
  • Stroke: 480 mm / 18.9 in
  • Swept Volume: 38.7 l/cyl / 2361.62 in³

Generator Set Configurations

  • Emissions/Fuel Strategy: EPA Tier 2 & IMO II

Generator Set Dimensions and Weights – Dependent on Generator Type

  • Height: 4801 mm – 4869 mm (189.0 in – 191,7 in)
  • Length: 9302 mm – 11419 mm (366.2 in – 449.6 in)
  • Weight: 73.0 t – 98.0 t (160937 lbs – 216053 lbs)
  • Width: 2600 mm – 2639 mm ( 102.4 in – 103.9 in)
