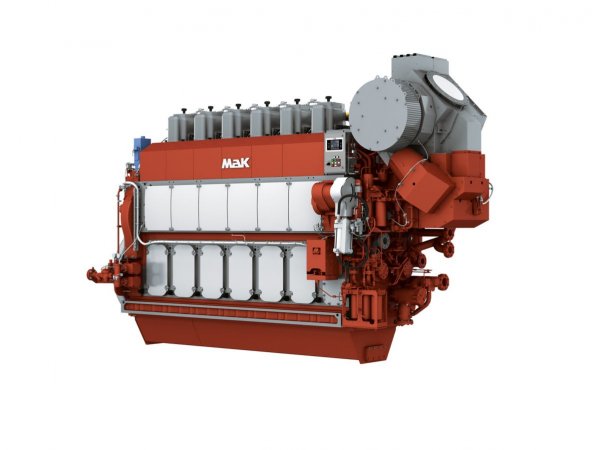

M 34 DF – MOTORES MARÍTIMOS

  • ColeçãoColeçãoMOTORES MARÍTIMOS
carousel

Descrição

Driven by upcoming fuel sulfur and NOx regulations in Emission Control Areas (ECA), the M 34 DF provides full flexibility for vessels operating in regulated and/or lesser regulated areas without major changes to the engine room or the exhaust gas system supporting installation and certification simplicity. The M 34 DF will be capable of running on Liquid Natural Gas (LNG) as an alternative to expensive low sulfur Marine Diesel Oil (MDO) or large and complex scrubber installations for ECA operation as of 2015. High efficiency and proven reliability make the M 34 DF an excellent propulsion engine for operation in- and outside of environmental protected areas as well as waters with HFO limitations.

Informações Tećnicas

  • Power Range: 3060-4770 bkW
  • Speed Range: 720 / 750 rpm
  • Emissions: IMO II

Mais informações

Power Rating

  • Power Range: 3060-4770 bkW

Engine Specifications

  • Speed Range: 720 / 750 rpm
  • Emissions: IMO II
  • Aspiration: Turbocharged
  • Bore: 340 mm / 13.4 in
  • Stroke: 460 mm / 18.11 in
  • Rotation from Flywheel End: Counterclockwise / Clockwise
  • Configuration: 6,8,9 Cylinder
  • Swept Volume: 42 l/cyl / 2563 in³

Dimensions & Weights

  • Minimum Dry Weight: 39.5 ton (US) / 87082.6 lb
  • Minimum Length: 6109 mm / 240.5 in
  • Minimum Height: 3869 mm / 152.3 in
  • Maximum Height: 4209 mm / 165.7 in
  • Minimum Width: 2291 mm / 90.2 in
  • Maximum Width: 2291 mm / 90.2 in
  • Maximum Length: 7234 mm / 284.8 in
