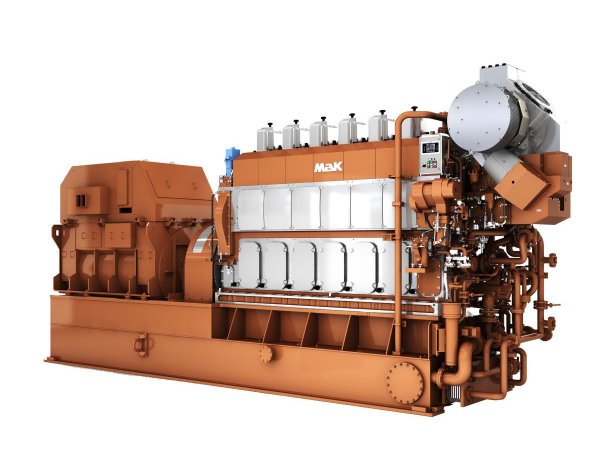

The M 32 E is designed for the offshore market focused on generator set application. The 720/750 rpm concept will reduce generator costs. Charge air cooler housing and charge air cooler allow easier disassembly and cleaning. The new design still supports operation at any ambient condition without load reduction. We offer a generator set application for customers operating the engines mainly below 47 %.

Informações Tećnicas

• Maximum Rating: 5747 kWe (5940 kVA)
• Minimum Rating: 3165 kWe (3960 kVA)

Mais informações

Generator Set Specifications

• Minimum Rating: 3165 kWe (3960 kVA)
• Maximum Rating: 5747 kWe (5940 kVA)
• Emissions/Fuel Strategy: IMO II

Engine Specifications

• Bore: 320 mm / 12.6 in
• Stroke: 460 mm / 18.1 in
• Swept Volume: 37 l / 2257.88 in³
• Configuration: 6,8,9 Cylinder

Generator Set Configurations

• Emissions/Fuel Strategy: IMO II

Generator Set Dimensions

• Weight: 73.0 - 98.0 t (160937 - 216053 lbs)
• Length: 9566 - 11156 mm (376.6 - 439.2 in)
• Width: 2600 mm (102.4 in)
• Height: 4565 - 4770 mm (179.7 - 187.8 in)
