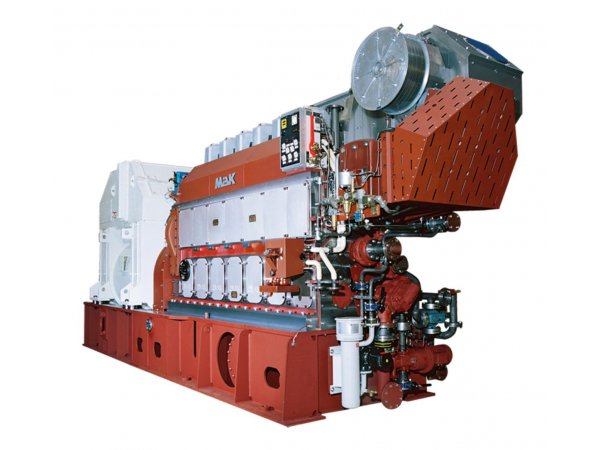

The complete diesel generator set is notable for its ease of installation, reliable operation, ease of maintenance and good component accessibility. The basis is formed by the rigid base frame as a foundation of the engine and alternator with an integrated oil sump, large oil volume and universal equipment for both HFO and MDO operation. The M 25 C has a wide range of application providing power for the continuous generation of electricity where a high level of reliability is important. The power range of the M 25 C engine series as a generator unit varies from 2,140 to 3,560 kVA.

Informações Tećnicas

• Maximum Rating: 2877 kWe (3600 kVA)
• Minimum Rating: 1669 kWe (2088 kVA)

Mais informações

Generator Set Specifications

• Minimum Rating: 1669 kWe (2088 kVA)
• Maximum Rating: 2877 kWe (3600 kVA)
• Emissions/Fuel Strategy: IMO II

Engine Specifications

• Configuration: 6,8,9 Cylinder
• Bore: 255 mm / 10 in
• Stroke: 400 mm / 15.75 in
• Swept Volume: 20.4 l/cyl / 1244.88 in³

Generator Set Configurations

• Emissions/Fuel Strategy: IMO II

Generator Set Dimensions and Weights - Dependent on Generator Type

• Height: 3911 mm - 3963 mm (154.0 in - 156.0 in)
• Length: 8070 mm - 9516 mm (317.7 in - 374.6 in)
• Weight: 43 t - 56 t (94799 lbs - 123459 lbs)
• Width: 2479 mm - 2534 mm ( 97.6 in - 99.8 in)
