C7.1 Tier 3 / IMO II – MOTORES MARÍTIMOS

  • ColeçãoColeçãoMOTORES MARÍTIMOS
carousel

Descrição

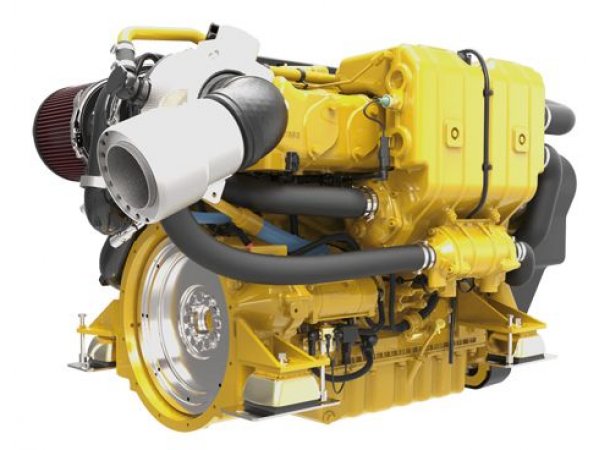

C7.1 Marine Auxiliary Engine (U.S. EPA Tier 3 / IMO II)

Informações Tećnicas

  • Aspiration: Turbocharged-aftercooled aspiration

Mais informações

Dimensions & Weights

  • Length: 1095 mm / 43.1 in
  • Height: 891 mm / 35.1 in
  • Minimum Width: 798 mm / 31.4 in
  • Maximum Width: 850 mm / 33.5 in
  • Minimum Engine Dry Weight: 730 / 1609 lb
  • Maximum Engine Dry Weight: 760 / 1676 lb

Power Rating

  • Power Range: 208 bkW (280 bhp) @ 2300 rpm

Engine Specifications

  • Configuration: In-line 6, 4-stroke-cycle diesel
  • Emissions: U.S. EPA Tier 3 / IMO II emissions certified (commercial), RCD 2016 compliant, EU Stage IIIA compliant, CCNR Stage II through reciprocity with EU Stage IIIA
  • Rated Engine Speed: 2300 rpm
  • Bore: 105 mm / 4.13 in
  • Stroke: 135 mm / 5.31 in
  • Displacement: 7.01 l / 428 in³
  • Aspiration: Turbocharged-aftercooled aspiration
  • Governor: Electronic (A5E2 V2 ECM)
  • Refill Capacity: Lube Oil System w/Oil filter change: 20 L (5.3 gal)
  • Oil Change Interval: 500 hrs
  • Cooling: Heat exchanger or keel cooled
  • Flywheel Housing: SAE No. 03 with SAE 11.5 in flywheel
  • Rotation: Counterclockwise from flywheel end
