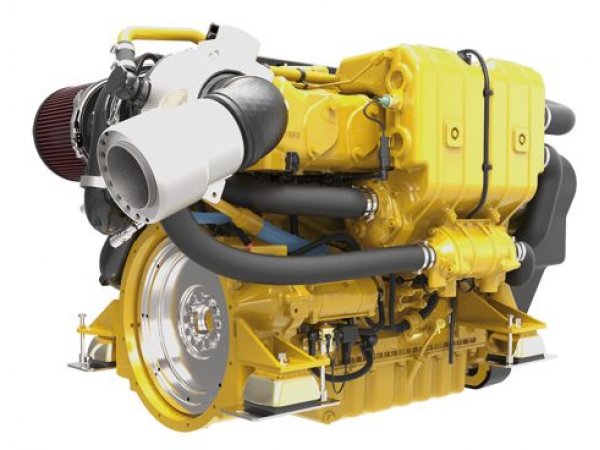

C7.1 Marine Propulsion Engine (U.S. EPA Tier 3 / IMO II)

Informações Tećnicas

• Maximum Rating: 317 bkW
• Rated Engine Speed: 2300 - 2700 rpm
• Emissions: U.S. EPA Tier 3 / IMO II emissions certified (commercial), RCD 2016 compliant, EU Stage IIIA compliant, CCNR Stage II through reciprocity with EU Stage IIIA

Mais informações

Dimensions & Weights

• Length: 1095 mm / 43.1 in
• Height: 891 mm / 35.1 in
• Minimum Width: 798 mm / 31.4 in
• Maximum Width: 850 mm / 33.5 in
• Minimum Engine Dry Weight: 730 / 1609 lb
• Maximum Engine Dry Weight: 760 / 1676 lb

Power Rating

• Minimum Rating: 208 bkW / 280 BHP
• Maximum Rating: 317 bkW / 425 BHP

Engine Specifications

• Configuration: In-line 6, 4-stroke-cycle diesel
• Emissions: U.S. EPA Tier 3 / IMO II emissions certified (commercial), RCD 2016 compliant, EU Stage IIIA compliant, CCNR Stage II through reciprocity with EU Stage IIIA
• Rated Engine Speed: 2300 - 2700 rpm
• Bore: 105 mm / 4.13 in
• Stroke: 135 mm / 5.31 in
• Displacement: 7.01 l / 428 in³
• Aspiration: Turbocharged-aftercooled aspiration
• Governor: Electronic (A5E2 V2 ECM)
• Refill Capacity: Lube Oil System w/Oil filter change: 20 L (5.3 gal)
• Oil Change Interval: 500 hrs
• Cooling: Heat exchanger or keel cooled
• Flywheel Housing: SAE No. 03 with SAE 11.5 in flywheel
• Rotation: Counterclockwise from flywheel end
