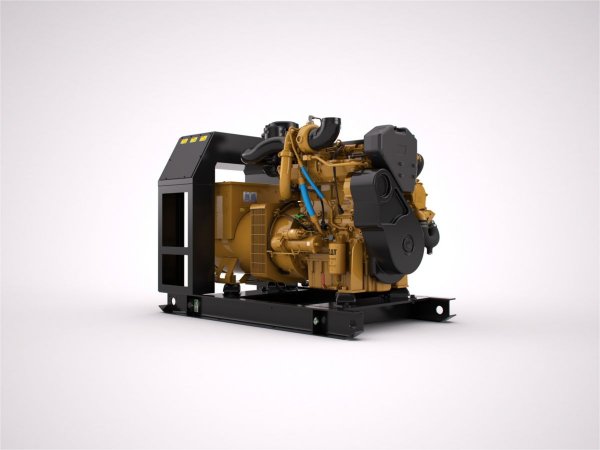

The C4.4 ACERT marine genset packages with heat exchanger or keel cooling are available with 60 Hz ratings of 60, 75, 99, 118 ekW and 50 Hz ratings of 65, 80, 99 ekW. Radiator cooled gen sets are with 60 Hz ratings of 51, 66, 90, and 105 ekW and 50 Hz ratings of 58, 73, and 88 ekW. The C4.4 ACERT meets U.S. EPA Tier 3 and EU CCNR Stage II emissions regulations. The C4.4 ACERT is electronically controlled with a Common Rail fuel system.

Informações Tećnicas

• Maximum Rating: 88R ekW (50 Hz), 105R ekW (60 Hz)
• Minimum Rating: 58R ekW (50 Hz), 51R ekW (60 Hz)
• Frequency: 50 Hz or 60 Hz

Mais informações

Generator Set Specifications

• Minimum Rating: 58R ekW (50 Hz), 51R ekW (60 Hz)
• Maximum Rating: 88R ekW (50 Hz), 105R ekW (60 Hz)
• Frequency: 50 Hz or 60 Hz
• Speed: 1500 rpm or 1800 rpm
• Emissions/Fuel Strategy: U.S. EPA Tier 3 / CCNR Stage 2

Engine Specifications

• Aspiration: TA
• Bore: 105 mm / 4.13 in
• Stroke: 127 mm / 5 in
• Displacement: 4.4 l / 269 in³
• Governor Type: Electronic
• Engine Model: I-4, 4-Stroke-Cycle-Diesel

Generator Set Configurations

• Emissions/Fuel Strategy: U.S. EPA Tier 3 / CCNR Stage 2

Generator Set Dimensions

• Weight: 2518-2844 lb (1142 - 1290 kg)
• Length: 66.9-69.6 in (1699-1769 mm), 80.2R in (2037R mm)
• Width: 37.6 inches (radiator - 38.8 inches)
• Height: 49.0 inches (1245 mm)

Generator Specifications

• Excitation: AREP
• Pitch: 2/3
• Number of Leads: 12-lead reconnectable
• Insulation: Class H
• IP Rating: IP23
• Voltage Regulator: ±0.5%
