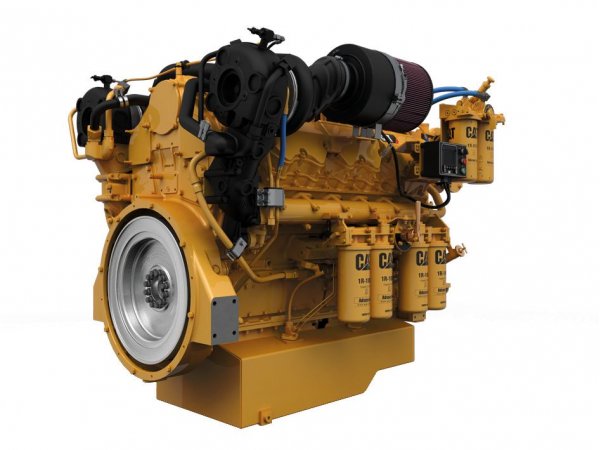

C32 Tier 3 / IMO II – MOTORES MARÍTIMOS

  • ColeçãoColeçãoMOTORES MARÍTIMOS
carousel

Descrição

Informações Tećnicas

  • Power Range: 61-1450 bhp (46-1072 bkW)
  • Rated Engine Speed: 1600-2300 rpm
  • Emissions: U.S. EPA Tier 3 / IMO II emissions certified

Mais informações

Clean Emissions Module (CEM) – Dimensions

  • 6 Brick U-Flow – Width:

Power Rating

  • Power Range: 61-1450 bhp (46-1072 bkW)

Engine Specifications

  • Emissions: U.S. EPA Tier 3 / IMO II emissions certified
  • Aspiration: Turbocharged-aftercooled aspiration
  • Bore: 145 mm / 5.71 in
  • Stroke: 162 mm / 6.38 in
  • Displacement: 32.1 l / 1959 in³
  • Rotation from Flywheel End: Counterclockwise from flywheel end
  • Configuration: Vee 12, 4-stroke-cycle diesel
  • Rated Engine Speed: 1600-2300 rpm
  • Cooling: Heat exchanger or keel cooled
  • Flywheel Housing: SAE No. 0 with SAE No. 18 flywheel (136 teeth)
  • Governor: Electronic (A4 ECM)
  • Oil Change Interval: 1000 hrs
  • Refill Capacity: Lube Oil System w/Oil filter change: 146 L (38.5 gal)

Dimensions & Weights

  • Minimum Length: 2130 mm / 83.9 in
  • Maximum Length: 2280 mm / 89.8 in
  • Minimum Height: 1507 mm / 59.3 in
  • Maximum Height: 1613 mm / 63.5 in
  • Minimum Width: 1451 mm / 57.1 in
  • Maximum Width: 1455 mm / 57.3 in
  • Minimum Engine Dry Weight: 3152 kg / 6950 lb
  • Maximum Engine Dry Weight: 3248 kg / 7160 lb
