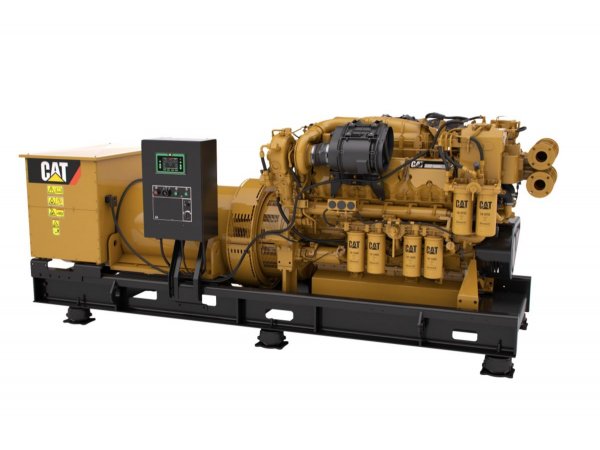

C32 ACERT generator sets incorporate a separate circuit aftercooling system (SCAC) for all configurations. The primary advantage of the SCAC systsem is reduced aftercooler corrosion since no sea water circulates through the aftercooler. Many other improvements on these engines contribute to minimizing owning and operating costs. The EPA Tier 3, IMO II, EU Stage IIIA compliant ratings are available with heat exchanger or keel cooled options. Heat exchanger configurations have an optional front mounted sea water pump.

Informações Tećnicas

• Maximum Rating: 940 ekW (1175 kVA)
• Minimum Rating: 730 ekW (913 kVA)
• Frequency: 60hz

Mais informações

Generator Set Specifications

• Minimum Rating: 730 ekW (913 kVA)
• Maximum Rating: 940 ekW (1175 kVA)
• Frequency: 60hz
• Speed: 1800 rpm
• Emissions/Fuel Strategy: EPA Tier III

Engine Specifications

• Aspiration: Turbocharged and aftercooled
• Bore: 145 mm / 5.7 in
• Stroke: 162 mm / 6.38 in
• Displacement: 32.1 l / 1959 in³
• Governor Type: Electronic
• Fuel System: MEUI
• Engine Model: Vee-12, 4-stroke-Cycle-Diesel

Generator Set Configurations

• Emissions/Fuel Strategy: EPA Tier III

Generator Set Dimensions

• Width: 1528 mm / 60.2 in
• Height: 1667 mm / 65.6 in
• Weight – Estimated: 7131 kg / 15721 lb
• Length: 162.8 in/4271 mm (minimum), 175.3 in/4452 mm (maximum)

Generator Specifications

• Excitation: Permanent magnet
• Number of Poles: 4
• Number of Bearings: 2 roller bearings
• Number of Leads: 6
• Insulation: Class H
• IP Rating: 23
• Voltage Regulator: CDVR
