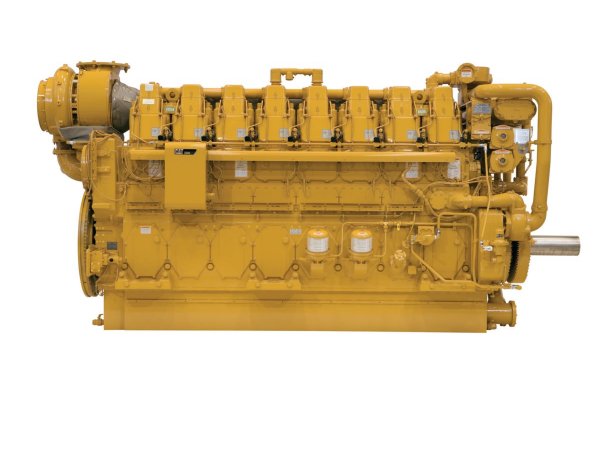

C280-8 Tier 4 – MOTORES MARÍTIMOS

  • ColeçãoColeçãoMOTORES MARÍTIMOS
carousel

Descrição

Building on the durability and reliability of the C280 engine platform, Caterpillar is pleased to offer the EPA Tier 2 compliant C280 engine line. The core components are the same as the existing C280, including the latest in EUI fuel system capabilities and state-of-the-art ADEM™ A3 Electronic Control Unit (ECU) features. Caterpillar® products continue to deliver more available power while delivering outstanding fuel efficiency. You can also count on long maintenance intervals and worldwide Caterpillar parts and service availability.

Informações Tećnicas

  • Power Range: 3299-3634 bhp (2460-2530 bkW)
  • Speed Range: 1000 rpm
  • Emissions: EPA Tier 4, IMO III

Mais informações

Power Rating

  • Power Range: 3299-3634 bhp (2460-2530 bkW)

Engine Specifications

  • Speed Range: 1000 rpm
  • Emissions: EPA Tier 4, IMO III
  • Aspiration: TA
  • Bore: 280 mm / 11 in
  • Stroke: 300 mm / 11.8 in
  • Displacement: 148 l / 9031 in³
  • Rotation from Flywheel End: Counterclockwise or clockwise
  • Configuration: In-line 8, 4-Stroke-Cycle Diesel

Dimensions & Weights

  • Minimum Dry Weight: 19000 kg / 41800 lb
  • Minimum Length: 4953 mm / 195 in
  • Maximum Length: 49536 mm / 195 in
  • Minimum Height: 2642 mm / 104 in
  • Maximum Height: 2642 mm / 104 in
  • Minimum Width: 1803 mm / 71 in
  • Maximum Width: 1803 mm / 71 in
