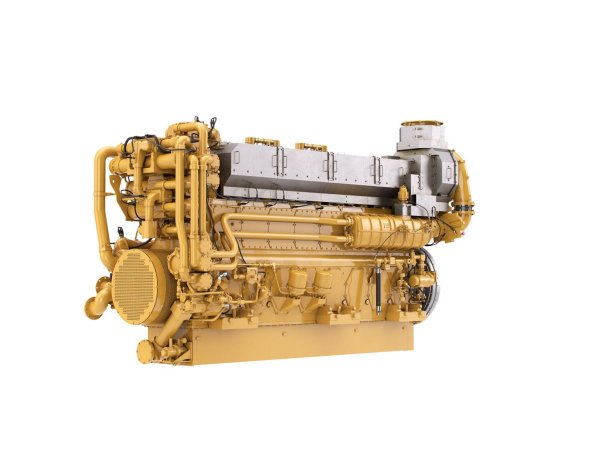

Building on the durability and reliability of the C280 engine platform, Caterpillar is pleased to offer the IMO II compliant C280 engine line. The core components are the same as the existing C280, including the latest in EUI fuel system capabilities and state-of-the-art ADEM™ A3 Electronic Control Unit (ECU) features. Caterpillar® products continue to deliver more available power while delivering outstanding fuel efficiency. You can also count on long maintenance intervals and worldwide Caterpillar parts and service availability.

Informações Tećnicas

• Power Range: 3084-3393 bhp (2300-2530 bkW)
• Speed Range: 900 rpm
• Emissions: IMO II

Mais informações

Power Rating

• Power Range: 3084-3393 bhp (2300-2530 bkW)

Engine Specifications

• Speed Range: 900 rpm
• Emissions: IMO II
• Aspiration: TA
• Bore: 280 mm / 11 in
• Stroke: 300 mm / 11.8 in
• Displacement: 148 l / 9031 in³
• Rotation from Flywheel End: Counterclockwise or clockwise
• Configuration: In-line 8, 4-Stroke-Cycle Diesel

Dimensions & Weights

• Dry Weight: 19000 kg / 41800 lb
• Height: 2642 mm / 104 in
• Length: 4953 mm / 195 in
• Width: 1803 mm / 71 in
