Informações Tećnicas

• Maximum Rating: 1820 ekW (2275 kVA)
• Minimum Rating: 1760 ekW (2200 kVA)
• Frequency: 50 Hz or 60 Hz

Mais informações

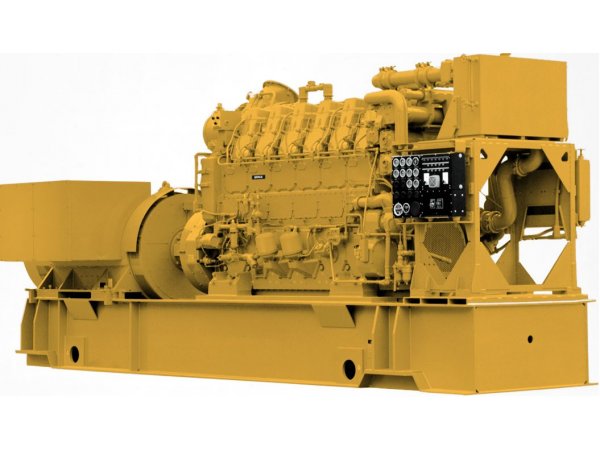

Generator Set Specifications

• Minimum Rating: 1760 ekW (2200 kVA)
• Maximum Rating: 1820 ekW (2275 kVA)
• Frequency: 50 Hz or 60 Hz
• Speed: 1000 rpm (50 hz) or 900 rpm (60 hz)
• Emissions/Fuel Strategy: EPA Tier 2, IMO II

Engine Specifications

• Aspiration: Turbocharged-Aftercooled
• Bore: 280 mm / 11 in
• Stroke: 300 mm / 11.8 in
• Displacement: 111 l / 6773 in³
• Governor Type: Electronic
• Fuel System: EUI
• Compression Ratio 50 Hz: 13.1
• Compression Ratio 60 Hz: 13:1
• Engine Model: In-line 6, 4-Stroke-Cycle Diesel

Generator Set Configurations

• Emissions/Fuel Strategy: EPA Tier 2, IMO II

Generator Set Dimensions

• Length: 7120 mm / 280.3 in
• Width: 1961 mm / 77.2 in
• Height: 3934 mm / 154.9 in
• Weight - Estimated: 8165 kg / 18000 lb
