C2.2 – MOTORES MARÍTIMOS

  • ColeçãoColeçãoMOTORES MARÍTIMOS
carousel

Descrição

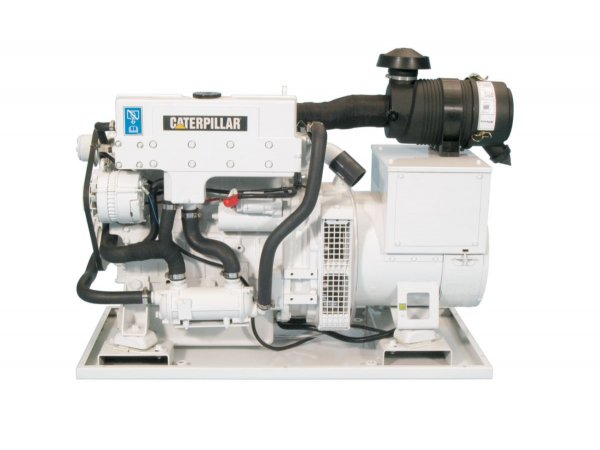

Cat® C2.2 Diesel Marine Generator Set has single phase ratings of 50 Hertz at 16.0 and 22.5 ekW and 60 Hertz at 19.0 and 27.0 ekW that meet U.S. EPA Tier 3 and EU IW emission standards.The Cat® C2.2 also has three phase ratings of 50 Hertz at 16.0 and 22.5 ekW and 60 Hertz at 19.5 and 27.0 ekW that meet U.S. EPA Tier 3 and EU IW emissions standards. This marine gen set is available in 12 or 24 volt as an open gen set or as an enclosed package.

Informações Tećnicas

  • Maximum Rating: 27 ekW (27 kVA)
  • Minimum Rating: 16 ekW (16kVA)
  • Frequency: 50 Hz or 60 Hz

Mais informações

Generator Set Specifications

  • Minimum Rating: 16 ekW (16kVA)
  • Maximum Rating: 27 ekW (27 kVA)
  • Frequency: 50 Hz or 60 Hz
  • Speed: 1500 rpm (50Hz) or 1800 rpm (60 Hz
  • Emissions/Fuel Strategy: EPA Tier 3, IMO NST, EU IW

Engine Specifications

  • Engine Model: C2.2, In-line 4, 4-Stroke-Cycle Diesel
  • Aspiration: Naturally Aspirated
  • Bore: 84 mm / 3.31 in
  • Stroke: 100 mm / 3.94 in
  • Displacement: 2.2 l / 135 in³
  • Governor Type: Electrical Ischronous
  • Fuel System: Fuel filter — RH or LH service, fuel priming, fuel transfer pump, flexible fuel lines

Generator Set Configurations

  • Emissions/Fuel Strategy: EPA Tier 3, IMO NST, EU IW

Generator Specifications

  • Excitation: AREP
  • Pitch: 2/3 pitch
  • Number of Poles: 4
  • Number of Leads: 4
  • Insulation: Class H
  • Voltage Regulation: ±0.5%
  • Frame Size: 2.2
  • IP Rating: 23
  • Wave Form Deviation – Line to Line: <2%
  • Voltage Regulator: Steady State

Dimensions & Weights

  • Height – Enclosed Set: 775 mm / 31 in
  • Height – Open Set: 825 mm / 32 in
  • Length – Enclosed Set: 1170 mm / 46 in
  • Length – Open Set: 1147 mm / 45 in
  • Maximum Approximate Weight: 466 kg / 1027 lb
  • Minimum Approximate Weight: 389 kg / 857 lb
  • Width – Enclosed Set: 608 mm / 24 in
  • Width – Open Set: 521 mm / 20.5 in
