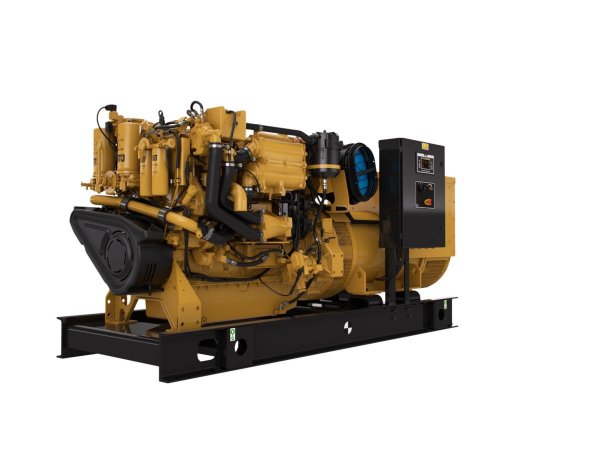

C18 (SRMP) Marine Generator Set - MOTORES MARÍTIMOS
- ColeçãoMOTORES MARÍTIMOS
Descrição
The C18 SRMP is the latest generator and brings commonality with our petroleum products as well as interfacing improvements. We have also taken this opportunity to add new price list options. All engine ratings and emissions certifications are the same, however we have been able to increase the power output of the generator for 12 of the 14 ratings.
Informações Tećnicas
- Maximum Rating: 565 ekW (706 kVA)
- Minimum Rating: 260 ekW (325 kVA)
- Frequency: 50 hz
Mais informações
Generator Set Specifications
- Minimum Rating: 260 ekW (325 kVA)
- Maximum Rating: 565 ekW (706 kVA)
- Frequency: 50 hz
- Speed: 50 Hz - 1500 rpm, 60 Hz - 1800 rpm
Engine Specifications
- Configuration: In-line 6, 4-Stroke-Cycle Diesel
- Aspiration: Turbocharged - aftercooled
- Bore: 145 mm / 5.7 in
- Stroke: 183 mm / 7.2 in
- Fuel System: MEUI
Generator Set Configurations
- Emissions: EPA Tier 3, IMO II, EU IW
Generator Set Dimensions - Keel and Hex Cooled
- Height: 1648 mm / 64.9 in
- Length: 3038 mm / 119.6 in
- Weight - Approximate: 4221 kg / 9747 lb
- Width: 1411 mm / 55.6 in
Generator Set Dimensions - Radiator Cooled
- Height: 2408 mm / 94.8 in
- Length: 4741 mm / 55.6 in
- Weight - Approximate: 6076 kg / 13396 lb
- Width: 1699 mm / 66.9 in
Generator Specifications
- Excitation: SRMP
- Insulation: Class H
- IP Rating: IP23 (standard), IP 44 (optional)
- Voltage Regulator: CDVR (Digital Voltage)
