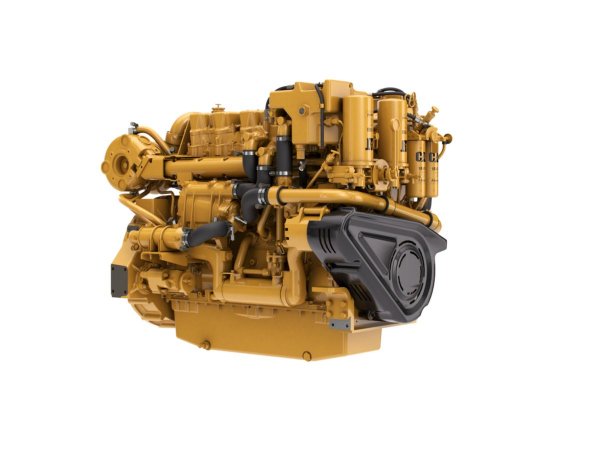

The C18 ACERT marine propulsion engine has commercial application ratings of 475-725 mhp (469-715 bhp) at 1800-2100 rpm that meet U.S. EPA Tier 3, IMO II, and EU IW emissions regulations. In addition to meeting the stricter EPA Tier 3 emissions, this engine now offers a fresh water aftercooled option for the commercial propulsion and auxiliary engines and genset packages. From fishing to offshore and everything in between, you can be confident that we have the solution to fit your needs.

Informações Tećnicas

• Power Range: 469-1001 bhp (350-747 bkW)
• Speed Range: 1800-2300 rpm
• Emissions: EPA Tier 3 Commercial, IMO II, EU IW

Mais informações

Power Rating

• Power Range: 469-1001 bhp (350-747 bkW)

Engine Specifications

• Speed Range: 1800-2300 rpm
• Emissions: EPA Tier 3 Commercial, IMO II, EU IW
• Aspiration: TA, TTA
• Bore: 145 mm / 5.7 in
• Stroke: 183 mm / 7.2 in
• Displacement: 18.1 l / 1106 in³
• Rotation from Flywheel End: Counterclockwise
• Configuration: In-line 6, 4-Stroke-Cycle Diesel

Dimensions & Weights

• Minimum Dry Weight: 1814 kg / 4000 lb
• Minimum Length: 1854 mm / 73 in
• Maximum Length: 19312 mm / 76 in
• Minimum Height: 1198 mm / 47.2 in
• Maximum Height: 1300 mm / 51.2 in
• Minimum Width: 1134 mm / 44.6 in
• Maximum Width: 1204 mm / 47.4 in
