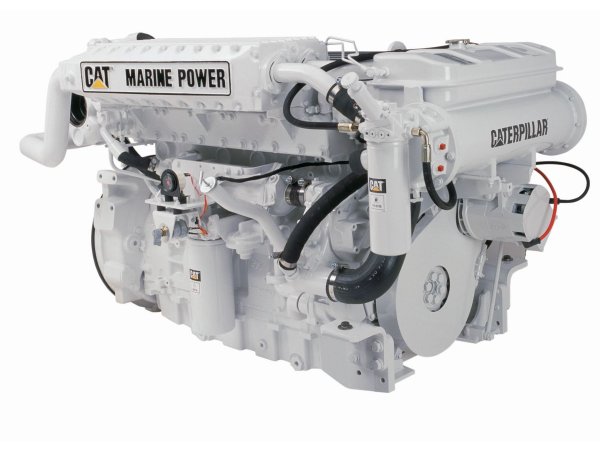

Cat® C12 Diesel Marine Propulsion Engines, with ratings of 578-609 mhp (570-600 bhp) at 2300 rpm, meet IMO I emission standards. The C12 takes full advantage of the electronically controlled unit injection fuel system, resulting in an environmentally friendly engine with outstanding performance and fuel economy. There is also a wide range of optional equipment available to meet the needs of your marine commercial or pleasure craft application.

Informações Tećnicas

• Power Range: 578-609 mhp (570-600 bhp)
• Speed Range: 2300 rpm
• Emissions: IMO I

Mais informações

Ratings

• Power Range: 578-609 mhp (570-600 bhp)

Engine

• Speed Range: 2300 rpm
• Emissions: IMO I
• Aspiration: TA
• Bore: 130 mm / 5.1 in
• Stroke: 150 mm / 5.9 in
• Displacement: 12 l / 732 in³
• Rotation from Flywheel End: Counterclockwise
• Configuration: In-line 6, 4-Stroke-Cycle Diesel

Dimensions & Weights

• Dry Weight: 1174 kg / 2588 lb
• Height: 1005 mm / 39.5 in
• Length: 1574 mm / 62 in
• Width: 969 mm / 38.1 in
