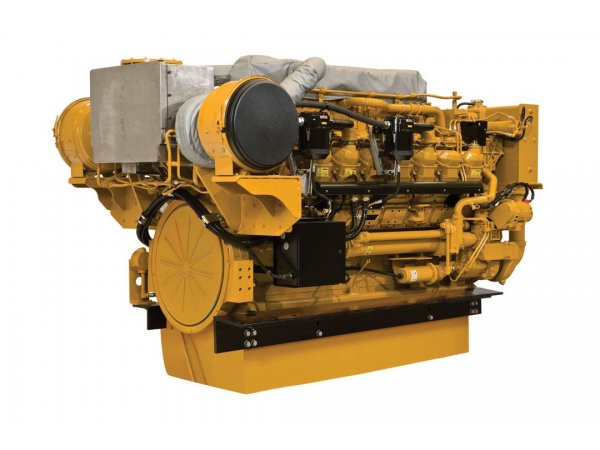

The 3516C propulsion engine is available with a wide range of ratings that meet EPA Tier 3 and IMO II regulations without any additional aftertreatment. These engines provide efficient operation with electronic governing, cold mode start strategy, and programmable low idle to minimize fuel consumption. The 3516C engine also incorporates a closed crankcase ventilation system to lower emissions.

Informações Tećnicas

• Power Range: 2131-2675 bhp (1590-1995 bkW)
• Speed Range: 1600 rpm
• Emissions: EPA Tier 3, IMO II

Mais informações

Power Rating

• Power Range: 2131-2675 bhp (1590-1995 bkW)

Engine Specifications

• Speed Range: 1600 rpm
• Emissions: EPA Tier 3, IMO II
• Aspiration: TTA
• Bore: 170 mm / 6.69 in
• Stroke: 215 mm / 8.46 in
• Displacement: 78 l / 4765 in³
• Rotation from Flywheel End: Counterclockwise
• Configuration: Vee 16, 4-Stroke-Cycle Diesel

Dimensions & Weights

• Dry Weight: 9600 kg / 21164 lb
• Length: 3192 mm / 125.7 in
• Height: 2225 mm / 87.6 in
• Width: 2284 mm / 89.9 in
