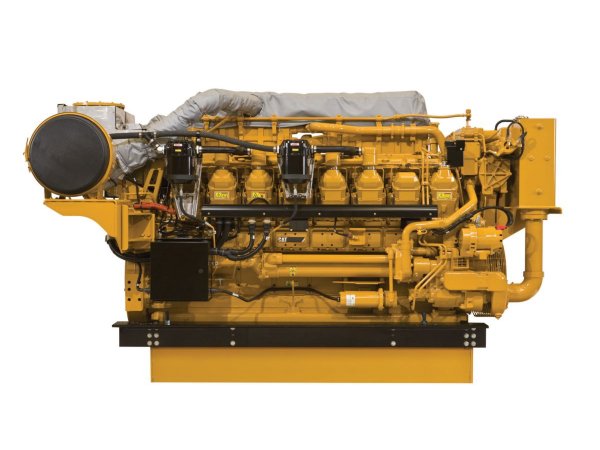

The 3516C propulsion engine is available with a wide range of ratings that meet IMO II regulations without any additional aftertreatment. These engines provide efficient operation with electronic governing, cold mode start strategy, and programmable low idle to minimize fuel consumption. The 3516C engine also incorporates a closed crankcase ventilation system to lower emissions.

Informações Tećnicas

• Power Range: 1650-3386 bhp (1230-2525 bkW)
• Speed Range: 1200-1800 rpm
• Emissions: IMO II

Mais informações

Power Rating

• Power Range: 1650-3386 bhp (1230-2525 bkW)

Engine Specifications

• Speed Range: 1200-1800 rpm
• Emissions: IMO II
• Aspiration: TTA
• Bore: 215 mm / 8.46 in
• Stroke: 170 mm / 7.48 in
• Displacement: 78 l / 4765 in³
• Rotation from Flywheel End: Counterclockwise or clockwise
• Configuration: Vee 16, 4-Stroke-Cycle Diesel

Dimensions & Weights

• Minimum Dry Weight: 7961 kg / 17550 lb
• Minimum Length: 3637 mm / 143.1 in
• Maximum Length: 3761 mm / 148 in
• Minimum Height: 1967 mm / 77.4 in
• Maximum Height: 2150 mm / 84.6 in
• Minimum Width: 2037 mm / 80.2 in
• Maximum Width: 2142 mm / 84.3 in
