3512C IMO II - MOTORES MARÍTIMOS
- ColeçãoMOTORES MARÍTIMOS
Descrição

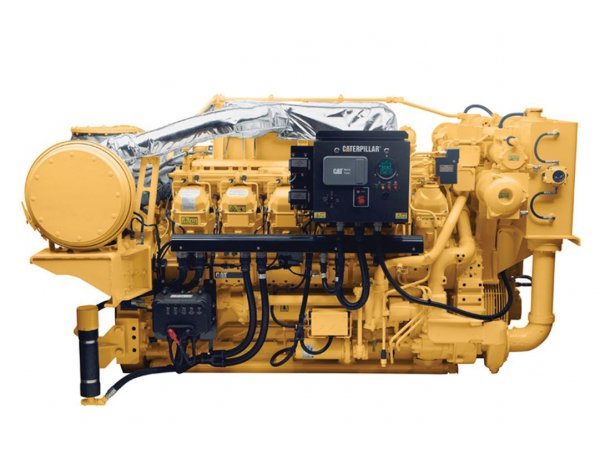

The Cat 3512C marine propulsion engine makes your investment work harder. Through a wide range of available power ratings (including High Displacement ratings), no required aftertreatment technology, and nominal rated BSFC fuel consumption - it will drive down your total cost of ownership. With a redesigned piston bowl shape to improve combustion, and improved fuel delivery, this engine is IMO II emissions compliant and committed to sustainable environmental development. Single-source support, the Caterpillar warranty, and industry-leading one-year warranty on parts make the 3512C a fully integrated marine power solution.
Informações Tećnicas
- Power Range: 1280-2551 bhp (955-1902 bkW)
- Speed Range: 1200 rpm, 1600 rpm, 1800 rpm
- Emissions: IMO II, EU IW
Mais informações
Power Rating
- Power Range: 1280-2551 bhp (955-1902 bkW)
Engine Specifications
- Speed Range: 1200 rpm, 1600 rpm, 1800 rpm
- Emissions: IMO II, EU IW
- Aspiration: TTA
- Bore: 170 mm / 6.69 in
- Stroke: 190 mm / 7.48 in
- Displacement: 51.8 l / 3161 in³
- Rotation from Flywheel End: Counterclockwise or Clockwise
- Configuration: Vee 12, 4-Stroke-Cycle Diesel
- Displacement - HD: 58.6 l / 3574 in³
- Stroke - HD: 215 mm / 8.5 in
Dimensions & Weights
- Maximum Height: 2242 mm / 88.3 in
- Maximum Length: 2669 mm / 105.1 in
- Maximum Width: 2232 mm / 87.9 in
- Minimum Dry Weight: 6532 kg / 14400 lb
- Minimum Height: 1904 mm / 75 in
- Minimum Length: 2590 mm / 102 in
- Minimum Width: 2037 mm / 80.2 in
- Maximum Dry Weight: 7411 kg / 16340 lb
