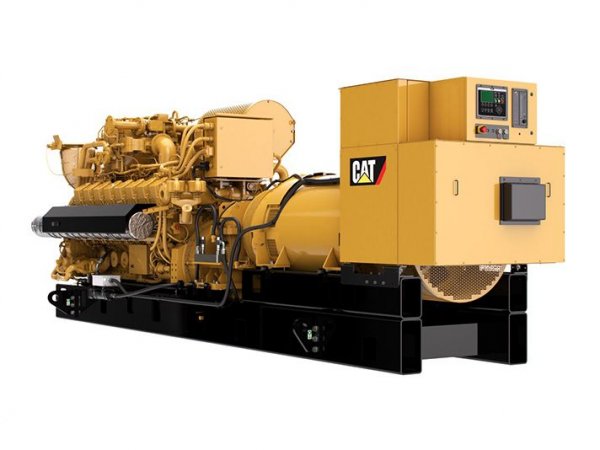

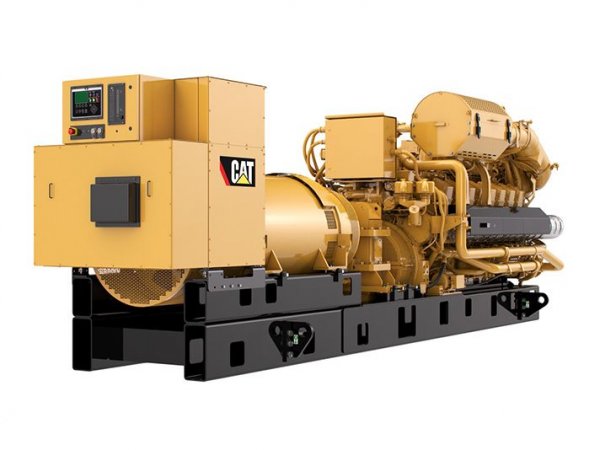

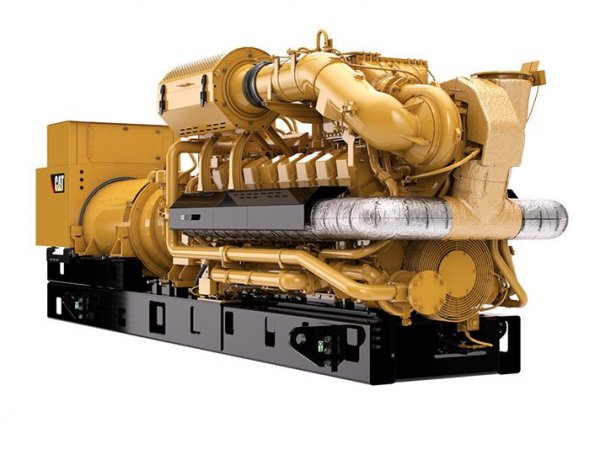

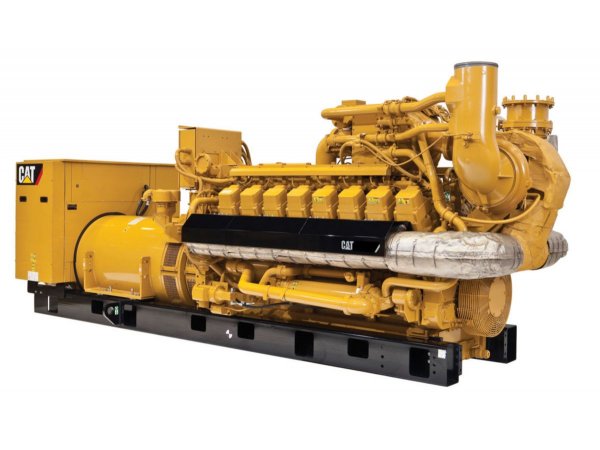

G3516H Generator Set

Informações Tećnicas

• Fuel System: Natural Gas
• Frequency: 50 / 60 Hz
• Emissions/Fuel Strategy: U.S. EPA Stationary Emergency Certified

Mais informações

Engine Specifications

• Compression Ratio: 12.1
• Fuel System: Natural Gas
• Engine Model: G3516H
• Displacement: 78 l / 4765 in³
• Aspiration: TA
• Bore: 170 mm / 6.7 in
• Stroke: 215 mm / 8.5 in

Gas Generator Sets Specification

• Maximum Continuous Rating: 2027 / 2007 ekW
• Fuel Type: Natural Gas
• Maximum Electrical Efficiency: 44.70%
• Frequency: 50 / 60 Hz
• RPM: 1500 / 1800 rpm

Generator Set Dimensions

• Length: 7395 mm / 291 in
• Width: 2139 mm / 84 in
• Height: 2402 mm / 95 in
• Dry Weight – Genset: 18315 kg / 40384 lb

Generator Set Configurations

• Emissions/Fuel Strategy: U.S. EPA Stationary Emergency Certified

Generator Sets Specification

• Maximum Continuous Rating: 2027 / 2007 ekW @ 1.0pf

Generator Set Specifications

• Fuel Type: Natural Gas
• Maximum Electrical Efficiency: 45.30%
• Frequency: 50 / 60 Hz
• RPM: 1500 / 1800 rpm

Generator Sets Specifications

• Maximum Electrical Efficiency: 45.3
• Frequency: 50 / 60 Hz
• RPM: 1500 / 1800 rpm

Generator Set Specification

• Maximum Continuous Rating: 2027 / 2007 ekW @ 1.0pf
