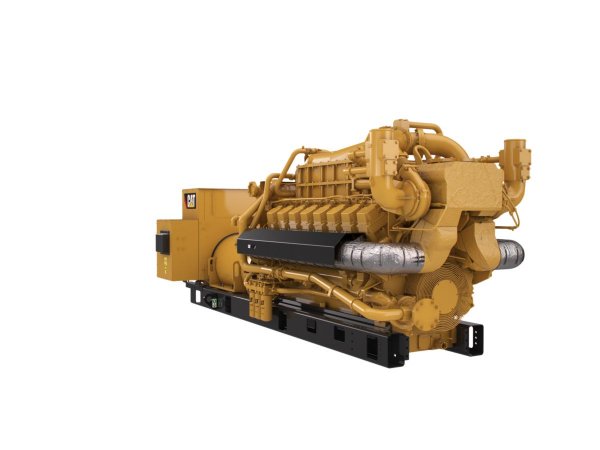

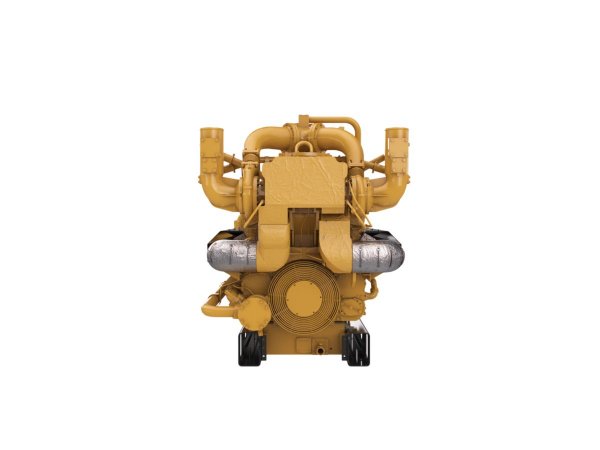

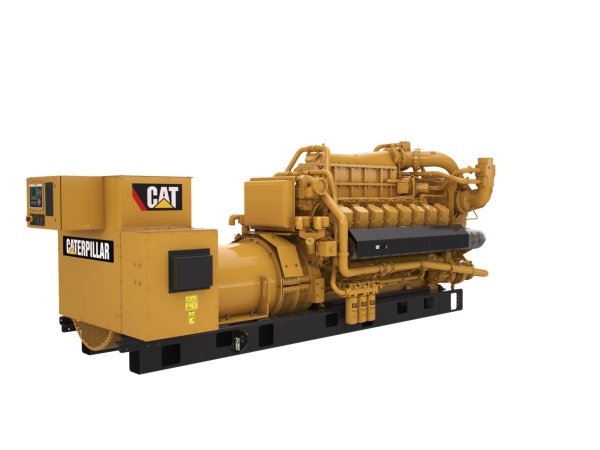

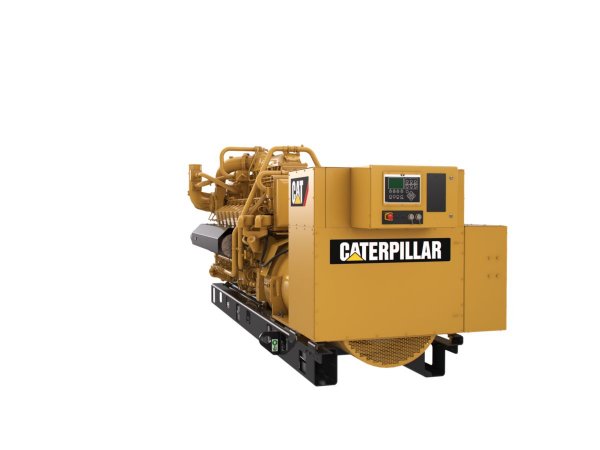

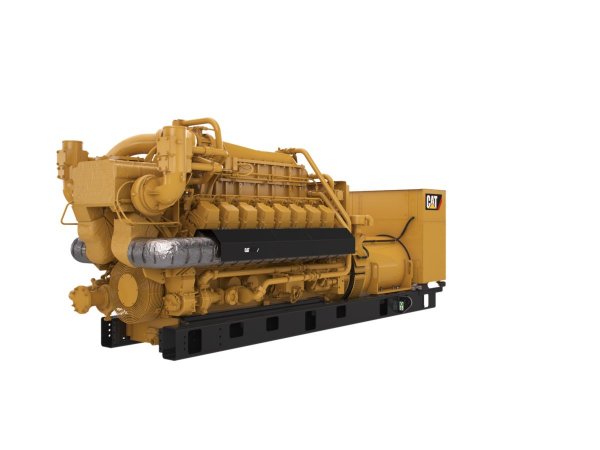

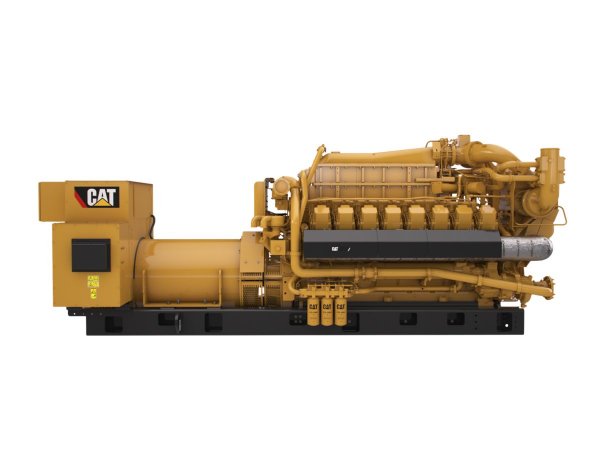

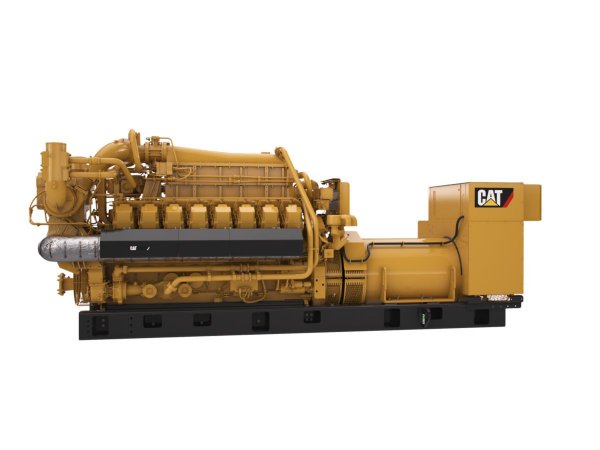

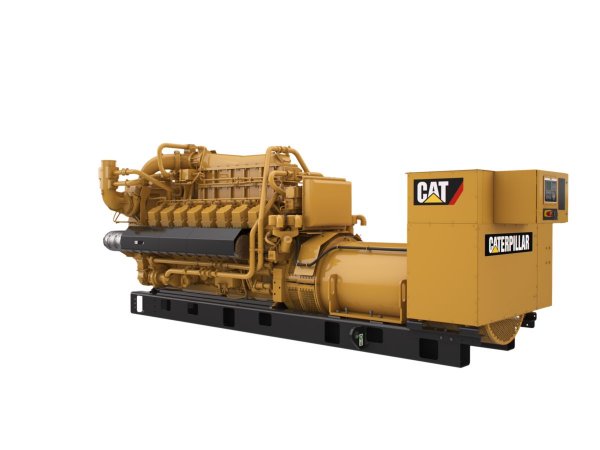

G3516C Generator Set

Informações Tećnicas

• Fuel Type: Natural Gas
• Frequency: 50 / 60 Hz

Mais informações

Gas Generator Sets Specification

• Maximum Continuous Rating: 1605 ekW
• Fuel Type: Natural Gas
• Maximum Electrical Efficiency: 40.1%
• Maximum Standby Rating: 1500 kW
• Frequency: 50 / 60 Hz
• RPM: 1500 / 1800 rpm

Engine Specifications

• Engine Model: G3516C
• Displacement: 69 l / 4210
• Aspiration: TA
• Bore: 170 mm / 6.7 in
• Stroke: 190 mm / 7.5 in

Generator Set Dimensions

• Length: 5553 mm / 219 in
• Width: 1828 mm / 72 in
• Height: 2340 mm / 92 in
• Dry Weight - Genset: 14161 kg / 31226 lb

Generator Sets Specification

• Maximum Continuous Rating: 1660 ekW

Generator Set Specifications

• Fuel Type: Natural Gas
• Maximum Electrical Efficiency: 37.70%
• Maximum Standby Rating: 1500
• Frequency: 50 / 60 Hz
• RPM: 1500/1800

Generator Sets Specifications

• Maximum Electrical Efficiency: 37.70%
• Maximum Standby Rating: 1500
• Frequency: 50 / 60 Hz
• RPM: 1500/1800

Generator Set Specification

• Maximum Continuous Rating: 1660 ekW
