CP68B – COMPACTADORES

  • ColeçãoColeçãoCOMPACTADORES
carousel
carousel
carousel
carousel
carousel
carousel
carousel

Descrição

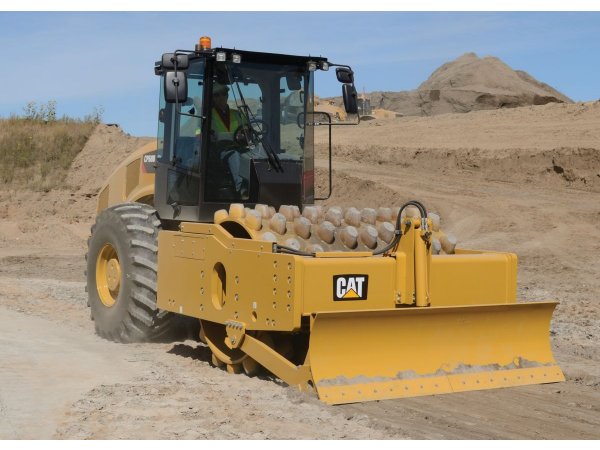

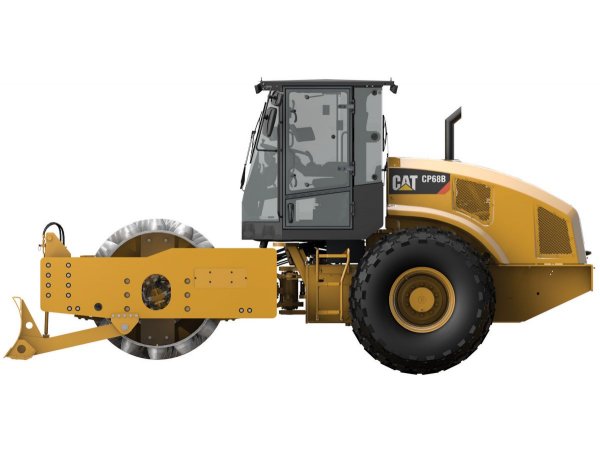

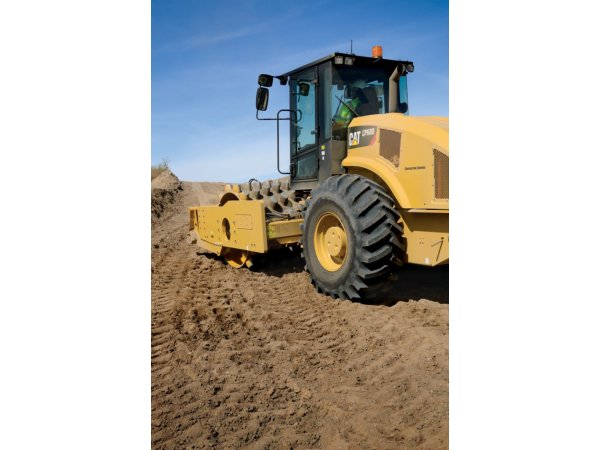

The CP68B Vibratory Soil Compactor combines world-class productivity with outstanding operator comfort while continuing the legacy of durability, reliability and ease-of-service that contractors worldwide have come to expect from Cat® machines.

Informações Tećnicas

  • Gross Power: 117 kW
  • Operating Weight – With Cab: 14685 kg
  • Compaction Width: 2134 mm

Mais informações

Weights

  • Operating Weight – With Cab: 14685 kg / 32370 lb
  • Weight – Drum with Cab: 9250 kg / 20387 lb

Operating Specifications

  • Compaction Width: 2134 mm / 84 in
  • Ground Clearance: 445 mm / 17.5 in
  • Travel Speed – Maximum: 11.4 km/h / 7 mile/h
  • Turning Radius – Inside Drum Edge: 3.68 m / 12.08 ft

Engine

  • Gross Power: 117 kW / 157 HP
  • Engine Model: Cat C4.4 with ACERT

Dimensions

  • Drum Diameter: 1295 mm / 51 in
  • Drum Diameter – Over Pads: 1549 mm / 61 in
  • Drum Width: 2134 mm / 84 in
  • Height – With ROPS/FOPS or Cab: 3.11 m / 10.25 ft
  • Optional Blade Height: 688 mm / 27.1 in
  • Overall Length: 6.05 m / 19.83 ft
  • Overall Length – With Blade Option: 6.55 m / 21.5 ft
  • Overall Width: 2.33 m / 7.67 ft
  • Overall Width – With Blade Option: 2.5 m / 8.25 ft
  • Wheel Base: 2.9 m / 9.58 ft

Vibratory System

  • Centrifugal Force – Maximum: 301 kN / 67600 lb
  • Centrifugal Force – Minimum: 141 kN / 31670 lb
  • Nominal Amplitude – High: 2.1 mm / 0.083 in
  • Nominal Amplitude – Low: 0.98 mm / 0.039 in
  • Variable Frequency Option Range: 23.3 – 30.5 Hz (1400-1830 vpm)
  • Vibratory Frequency – Standard: 30.5 Hz (1830 vpm)

Tires

  • Tires: 23.1 x 26

Service Refill Capacities

  • Fuel Tank Capacity: 242 l / 64 gal (US)
