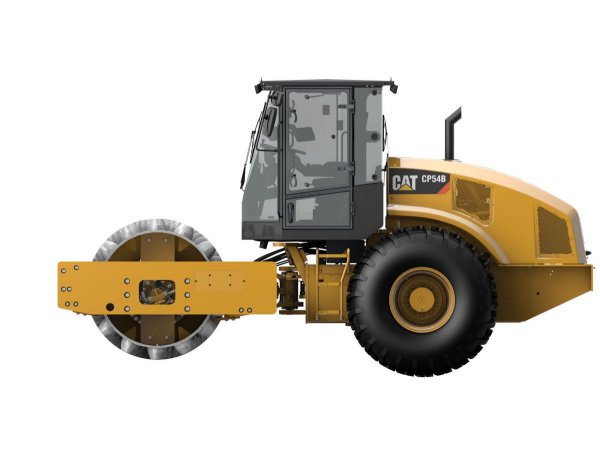

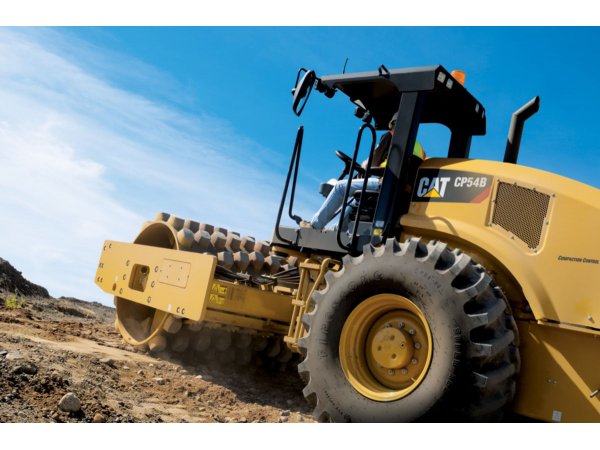

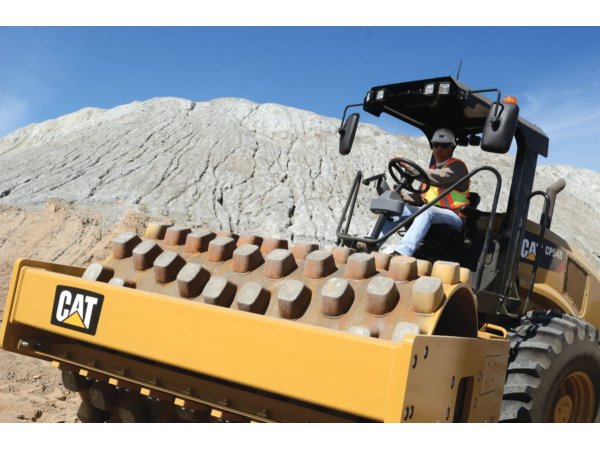

CP54B - COMPACTADORES
- ColeçãoCOMPACTADORES
Descrição
The CP54B Vibratory Soil Compactor combines world-class productivity with outstanding operator comfort while continuing the legacy of durability, reliability and ease-of-service that contractors worldwide have come to expect from Cat® machines.
Informações Tećnicas
- Gross Power: 98 kW
- Operating Weight - With Cab: 11135 kg
- Compaction Width: 2134 mm
Mais informações
Weights
- Operating Weight - With Cab: 11135 kg / 24539 lb
- Operating Weight - With ROPS/FOPS: 10935 kg / 24096 lb
- Weight - Drum with Cab: 6395 kg / 14092 lb
- Weight - Drum with ROPS/FOPS: 6300 kg / 13887 lb
Operating Specifications
- Compaction Width: 2134 mm / 84 in
- Ground Clearance: 450 mm / 17.7 in
- Travel Speed - Maximum: 11 km/h / 6.8 mile/h
- Turning Radius - Inside Drum Edge: 3.68 m / 12.08 ft
Engine
- Gross Power: 98 kW / 131 HP
- Engine Model: Cat C4.4 with ACERT
Dimensions
- Drum Diameter: 1295 mm / 51 in
- Drum Diameter - Over Pads: 1549 mm / 61 in
- Drum Width: 2134 mm / 84 in
- Height - With ROPS/FOPS or Cab: 3.11 m / 10.25 ft
- Overall Length: 5.85 m / 19.17 ft
- Overall Width: 2.3 m / 7.58 ft
- Wheel Base: 2.9 m / 9.58 ft
Vibratory System
- Centrifugal Force - Maximum: 266 kN / 59800 lb
- Centrifugal Force - Minimum: 133 kN / 29900 lb
- Nominal Amplitude - High: 1.9 mm / 0.075 in
- Nominal Amplitude - Low: 0.88 mm / 0.035 in
- Variable Frequency Option Range: 23.3 - 30.5 Hz (1400-1830 vpm)
- Vibratory Frequency - Standard: 30.5 Hz (1830 vpm)
Tires
- Tires: 23.1 x 26
Service Refill Capacities
- Fuel Tank Capacity: 242 l / 64 gal (US)
