CM43C V-Type – GRUPOS GERADORES

  • ColeçãoColeçãoGRUPOS GERADORES
carousel

Descrição

Caterpillar electric power stands for reliable energy supply. Especially during the energy system transformation, Cat generator sets close the energy gap caused by renewable energy source such as wind and photo voltaic. Short ramp up time, low operating costs and rapid maintenance times ensures a high availability according to the need of our customers. Combined heat /cool and power solutions allow our customers to maximize the efficiency and earnings paired with low emissions. Wherever power is needed around the globe, Caterpillar is able to support you with the best products and services to maximize your profit.

Informações Tećnicas

  • Minimum Rating: 11170 kWe
  • Maximum Rating: 14890 kWe
  • Emissions/Fuel Strategy: (WB) Cert stage 1 and 2

Mais informações

Generator Set Specifications

  • Minimum Rating: 11170 kWe
  • Maximum Rating: 14890 kWe
  • Emissions/Fuel Strategy: (WB) Cert stage 1 and 2
  • Voltage: 3000 to 13800 Volts
  • Frequency At Speed: 50 Hz @ 500 / 60 Hz @ 514
  • Duty Cycle: Prime, Continuous
  • Ready To Accept Loads (Preheated/Vented): 40 s
  • Normal Ramp Up To 100% Load: 95 s
  • Emergency Ramp Up 10% To 100% Load: 35 s
  • Genset Efficiency Up To: 48.90%

Engine Specifications

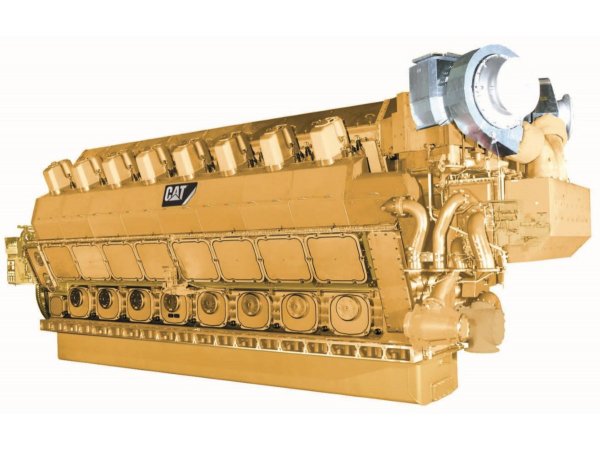

  • Engine Model: CM43C V-Type, 4-stroke-engine
  • Bore: 430 mm / 16.93 in
  • Stroke: 610 mm / 24.02 in
  • Aspiration: Turbocharged-aftercooled
  • Engine Rating Range: 11400 – 15200 kW
  • Configuration: 12,16 cylinder
  • Fuel Type: Diesel oil / heavy fuel oil (HFO) / crude oil
  • Swept Volume: 88.6 l/cyl / 5406 in³
  • Mean Effective Pressure Up To: 25.8 bar / 374 psi

Generator Set Dimensions

  • Length – Minimum: 14280 mm / 562 in
  • Length – Maximum: 16565 mm / 652 in
  • Width – Minimum: 4127 mm / 162 in
  • Width – Maximum: 4127 mm / 162 in
  • Height – Minimum: 4659 mm / 183 in
  • Height – Maximum: 4773 mm / 188 in
  • Dry Weight – Genset (minimum): 227 ton (US) / 500449 lb
  • Dry Weight – Genset (maximum): 286 ton (US) / 630521 lb
