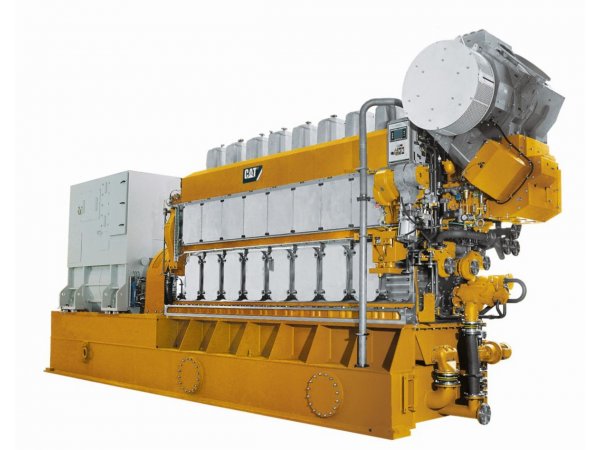

CM32E – GRUPOS GERADORES

  • ColeçãoColeçãoGRUPOS GERADORES
carousel

Descrição

Caterpillar electric power stands for reliable energy supply. Especially during the energy system transformation, Cat generator sets close the energy gap caused by renewable energy source such as wind and photo voltaic. Short ramp up time, low operating costs and rapid maintenance times ensures a high availability according to the need of our customers. Combined heat /cool and power solutions allow our customers to maximize the efficiency and earnings paired with low emissions. Wherever power is needed around the globe, Caterpillar is able to support you with the best products and services to maximize your profit.

Informações Tećnicas

  • Minimum Rating: 3085 kWe
  • Maximum Rating: 4630 kWe
  • Emissions/Fuel Strategy: (WB) Cert stage 1 and 2

Mais informações

Generator Set Specifications

  • Minimum Rating: 3085 kWe
  • Maximum Rating: 4630 kWe
  • Emissions/Fuel Strategy: (WB) Cert stage 1 and 2
  • Voltage: 3000 to 13800 Volts
  • Frequency At Speed: 50 Hz @ 750 / 60 Hz @ 720
  • Duty Cycle: Prime, Continuous
  • Ready To Accept Loads (Preheated/Vented): 40 s
  • Normal Ramp Up To 100% Load: 95 s
  • Emergency Ramp Up 10% To 100% Load: 30 s
  • Genset Efficiency Up To: 46.40%

Engine Specifications

  • Engine Model: CM32E, 4-stroke-engine
  • Bore: 320 mm / 12.6 in
  • Stroke: 460 mm / 18.11 in
  • Aspiration: Turbocharged-aftercooled
  • Engine Rating Range: 3150 – 4725 kW
  • Configuration: 6,8,9 cylinder
  • Fuel Type: Diesel oil / heavy fuel oil (HFO) / crude oil
  • Swept Volume: 37 l/cyl / 2258 in³
  • Mean Effective Pressure Up To: 23.7 bar / 344 psi

Generator Set Dimensions

  • Length – Minimum: 9566 mm / 377 in
  • Length – Maximum: 11156 mm / 439 in
  • Width – Minimum: 2600 mm / 102 in
  • Width – Maximum: 2600 mm / 102 in
  • Height – Minimum: 4567 mm / 180 in
  • Height – Maximum: 4770 mm / 188 in
  • Dry Weight – Genset (minimum): 71 ton (US) / 156528 lb
  • Dry Weight – Genset (maximum): 98 ton (US) / 216053 lb
