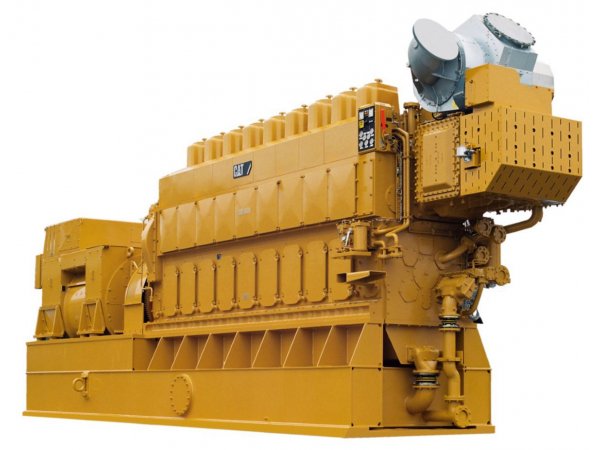

CM32C Inline - GRUPOS GERADORES
- ColeçãoGRUPOS GERADORES
Descrição
Caterpillar electric power stands for reliable energy supply. Especially during the energy system transformation, Cat generator sets close the energy gap caused by renewable energy source such as wind and photo voltaic. Short ramp up time, low operating costs and rapid maintenance times ensures a high availability according to the need of our customers. Combined heat /cool and power solutions allow our customers to maximize the efficiency and earnings paired with low emissions. Wherever power is needed around the globe, Caterpillar is able to support you with the best products and services to maximize your profit.
Informações Tećnicas
- Minimum Rating: 2780 kWe
- Maximum Rating: 4170 kWe
- Emissions/Fuel Strategy: (WB) Cert stage 1 and 2
Mais informações
Generator Set Specifications
- Minimum Rating: 2780 kWe
- Maximum Rating: 4170 kWe
- Emissions/Fuel Strategy: (WB) Cert stage 1 and 2
- Voltage: 3000 to 13800 Volts
- Frequency At Speed: 50 Hz @ 600 / 60 Hz @ 600
- Duty Cycle: Prime, Continuous
- Ready To Accept Loads (Preheated/Vented): 40 s
- Normal Ramp Up To 100% Load: 85 s
- Emergency Ramp Up 10% To 100% Load: 30 s
- Genset Efficiency Up To: 46.00%
Engine Specifications
- Engine Model: CM32C Inline, 4-stroke-engine
- Bore: 320 mm / 12.6 in
- Stroke: 480 mm / 18.9 in
- Aspiration: Turbocharged-aftercooled
- Engine Rating Range: 2880 - 4320 kW
- Configuration: 6,8,9 cylinder
- Fuel Type: Diesel oil / heavy fuel oil (HFO) / crude oil
- Swept Volume: 38.6 l/cyl / 2356 in³
- Mean Effective Pressure Up To: 24.9 bar / 361 psi
Generator Set Dimensions
- Length - Minimum: 9302 mm / 366 in
- Length - Maximum: 11419 mm / 450 in
- Width - Minimum: 2600 mm / 102 in
- Width - Maximum: 2639 mm / 104 in
- Height - Minimum: 4801 mm / 189 in
- Height - Maximum: 4869 mm / 192 in
- Dry Weight - Genset (minimum): 73 ton (US) / 160937 lb
- Dry Weight - Genset (maximum): 98 ton (US) / 216053 lb
