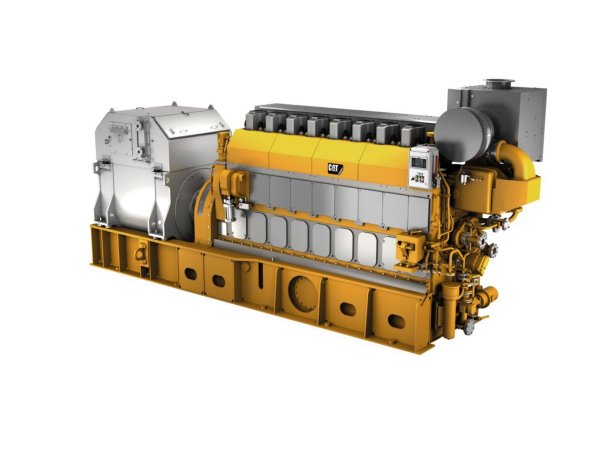

CM25E - GRUPOS GERADORES
- ColeçãoGRUPOS GERADORES
Descrição
Caterpillar electric power stands for reliable energy supply. Especially during the energy system transformation, Cat generator sets close the energy gap caused by renewable energy source such as wind and photo voltaic. Short ramp up time, low operating costs and rapid maintenance times ensures a high availability according to the need of our customers. Combined heat /cool and power solutions allow our customers to maximize the efficiency and earnings paired with low emissions. Wherever power is needed around the globe, Caterpillar is able to support you with the best products and services to maximize your profit.
Informações Tećnicas
- Minimum Rating: 1940 kWe
- Maximum Rating: 2910 kWe
- Emissions/Fuel Strategy: (WB) Cert stage 1 and 2
Mais informações
Generator Set Specifications
- Minimum Rating: 1940 kWe
- Maximum Rating: 2910 kWe
- Emissions/Fuel Strategy: (WB) Cert stage 1 and 2
- Voltage: 3000 to 13800 Volts
- Frequency At Speed: 50 Hz @ 750 / 60 Hz @ 720
- Duty Cycle: Prime, Continuous
- Ready To Accept Loads (Preheated/Vented): 40 s
- Normal Ramp Up To 100% Load: 85 s
- Emergency Ramp Up 10% To 100% Load: 30 s
- Genset Efficiency Up To: 43.50%
Engine Specifications
- Engine Model: CM25, 4-stroke-engine
- Bore: 255 mm / 10.04 in
- Stroke: 400 mm / 15.75 in
- Aspiration: Turbocharged-aftercooled
- Engine Rating Range: 2010 - 3015 kW
- Configuration: 6,8,9 cylinder
- Fuel Type: Diesel oil / heavy fuel oil (HFO) / crude oil
- Swept Volume: 20.4 l/cyl / 1247 in³
- Mean Effective Pressure Up To: 27.3 bar / 396 psi
Generator Set Dimensions
- Length - Minimum: 7717 mm / 304 in
- Length - Maximum: 8713 mm / 343 in
- Width - Minimum: 2357 mm / 93 in
- Width - Maximum: 2357 mm / 93 in
- Height - Minimum: 3866 mm / 152 in
- Height - Maximum: 4066 mm / 160 in
- Dry Weight - Genset (minimum): 43 ton (US) / 94799 lb
- Dry Weight - Genset (maximum): 56 ton (US) / 123459 lb
