Caterpillar electric power stands for reliable energy supply. Especially during the energy system transformation, Cat generator sets close the energy gap caused by renewable energy source such as wind and photo voltaic. Short ramp up time, low operating costs and rapid maintenance times ensures a high availability according to the need of our customers. Combined heat /cool and power solutions allow our customers to maximize the efficiency and earnings paired with low emissions. Wherever power is needed around the globe, Caterpillar is able to support you with the best products and services to maximize your profit.

Informações Tećnicas

• Minimum Rating: 1735 kWe
• Maximum Rating: 2600 kWe
• Emissions/Fuel Strategy: (WB) Cert stage 1 and 2

Mais informações

Generator Set Specifications

• Minimum Rating: 1735 kWe
• Maximum Rating: 2600 kWe
• Emissions/Fuel Strategy: (WB) Cert stage 1 and 2
• Voltage: 3000 to 13800 Volts
• Frequency At Speed: 50 Hz @ 750 / 60 Hz @ 720
• Duty Cycle: Prime, Continuous
• Ready To Accept Loads (Preheated/Vented): 40 s
• Normal Ramp Up To 100% Load: 75 s
• Emergency Ramp Up 10% To 100% Load: 25 s
• Genset Efficiency Up To: 44.20%

Engine Specifications

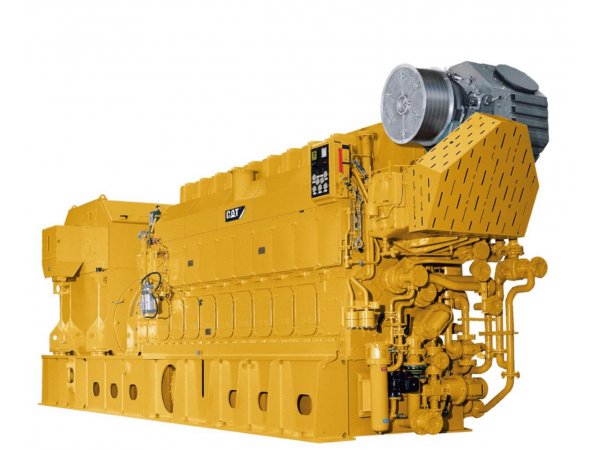

• Engine Model: CM25C, 4-stroke-engine
• Bore: 255 mm / 10.04 in
• Stroke: 400 mm / 15.75 in
• Aspiration: Turbocharged-aftercooled
• Engine Rating Range: 1800 – 2700 kW
• Configuration: 6,8,9 cylinder
• Fuel Type: Diesel oil / heavy fuel oil (HFO) / crude oil
• Swept Volume: 20.4 l/cyl / 1247 in³
• Mean Effective Pressure Up To: 24.5 bar / 355 psi

Generator Set Dimensions

• Length – Minimum: 8070 mm / 318 in
• Length – Maximum: 9516 mm / 375 in
• Width – Minimum: 2479 mm / 98 in
• Width – Maximum: 2534 mm / 100 in
• Height – Minimum: 3911 mm / 154 in
• Height – Maximum: 3963 mm / 156 in
• Dry Weight – Genset (minimum): 43 ton (US) / 94799 lb
• Dry Weight – Genset (maximum): 56 ton (US) / 123459 lb
