CG170-16 - GRUPOS GERADORES
- ColeçãoGRUPOS GERADORES
Descrição

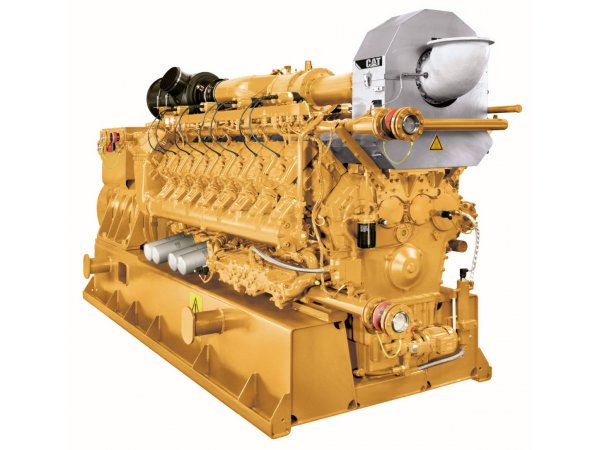

CG170 Gas Generator Set
Informações Tećnicas
- Fuel Type: Natural Gas, Biogas, Coal Gas
- Frequency: 50 or 60 Hz
Mais informações
Gas Generator Sets Specification
- Maximum Continuous Rating: 1560 ekW
- Fuel Type: Natural Gas, Biogas, Coal Gas
- Maximum Electrical Efficiency: 43.3%
- Frequency: 50 or 60 Hz
- RPM: 1500 or 1800 rpm
Engine Specifications
- Engine Model: CG170
- Displacement: 70.8 l / 4320 in³
- Aspiration: TA
- Bore: 170 mm / 6.7 in
- Stroke: 195 mm / 7.7 in
Generator Set Dimensions
- Length: 6640 mm / 261.4 in
- Width: 1778 mm / 70 in
- Height: 2210 mm / 87 in
- Dry Weight - Genset: 14900 kg / 32848.5 lb
Generator Sets Specification
- Maximum Continuous Rating: 1560 ekW @1.0pf
Generator Set Specifications
- Fuel Type: Natural Gas, Biogas, Coal Gas
- Maximum Electrical Efficiency: 43.30%
- Frequency: 50 or 60 Hz
- RPM: 1500 or 1800 rpm
Generator Sets Specifications
- Maximum Electrical Efficiency: 43.30%
- Frequency: 50 or 60 Hz
- RPM: 1500 or 1800 rpm
Generator Set Specification
- Maximum Continuous Rating: 1560 ekW @1.0pf
