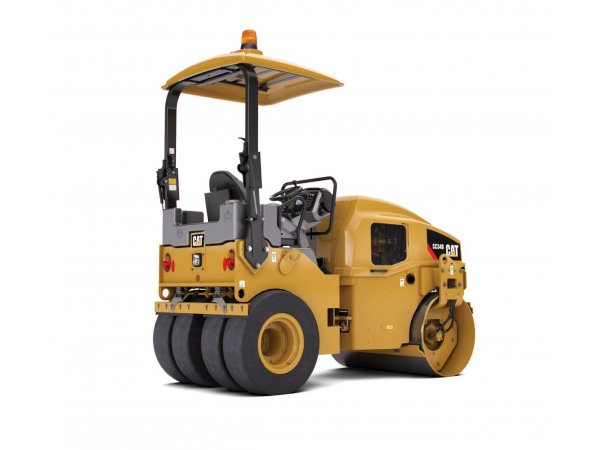

The CC34B is a versatile machine that can be used as the only vibratory roller on small sized jobs or on larger jobs as a support roller for high-production rollers. The CC34B provides greater production capabilities with its 1200 mm (47") wide drum and 4 rear pneumatic wheels. Its high amplitude and drum width give it the capacity to achieve a tons-per-day production rate that make it an excellent match for shoulders, small parking lots, lane additions or other similar sized jobs.

Informações Tećnicas

• Gross Power: 36.6 kW
• Operating Weight: 3378 kg
• Standard Compaction Width: 1300 mm

Mais informações

Weights

• Operating Weight: 3378 kg / 7446 lb
• Maximum Weight at Front Drum: 1803 kg / 3974 lb
• Maximum Weight at Rear Drum: 1427 kg / 3147 lb
• Maximum Weight at Rear Wheels: 1575 kg / 3472 lb

Operating Specifications

• Standard Compaction Width: 1300 mm / 51 in
• Curb Clearance: 520 mm / 20 in
• Turning Radius - Inside Drum Edge: 2937 mm / 9.6 ft
• Ground Clearance: 284 mm / 11 in
• Static Linear Load: 13 kg/cm / 73 lb/in
• Travel Speed - Maximum: 12 km/h / 7.5 mile/h

Engine

• Gross Power: 36.6 kW / 49.1 HP
• Engine Model: C2.2

Dimensions

• Overall Length: 2859 mm / 113 in
• Wheel Base: 2050 mm / 81 in
• Overall Width: 1400 mm / 55 in
• Drum Diameter: 800 mm / 32 in
• Drum Width: 1300 mm / 51 in
• Maximum Machine Height: 2765 mm / 109 in

Vibratory System

• Centrifugal Force per Drum - Maximum: 31.6 kN / 7104 lb
• Centrifugal Force per Drum - Minimum: 24.1 kN / 5418 lb
• Frequency: 55/48 Hz (3,300/2880 vpm)
• Nominal Amplitude - High: 0.5 mm / 0.02 in

Service Refill Capacities

• Fuel Tank Capacity: 90.7 l / 24 gal (US)
• Water Spray Tank Capacity: 241 l / 64 gal (US)
