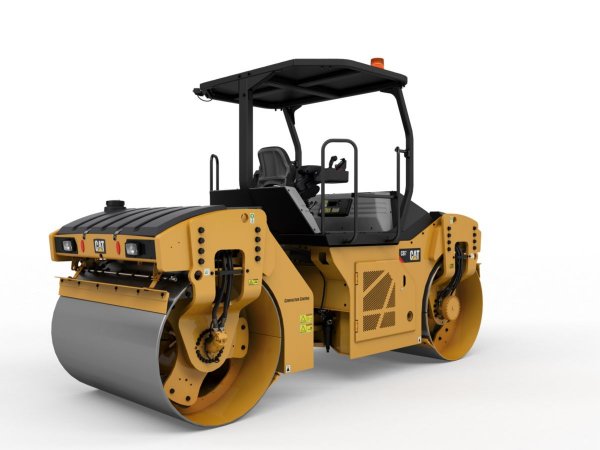

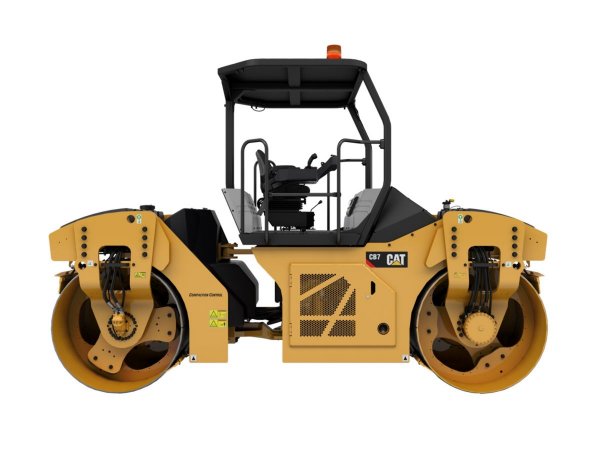

The CB7 is a 7 ton roller with 1500 mm (59″) tandem vibratory drums. It excels on a variety of asphalt mix designs as well as other granular materials.

Informações Tećnicas

• Gross Power: 75 kW
• Operating Weight: 7990 kg
• Standard Compaction Width: 1500 mm

Mais informações

Weights

• Maximum Operating Weight with Cab: 8940 kg / 19709 lb
• Maximum Operating Weight with ROPS: 8720 kg / 19224 lb
• Standard Operating Weight with Cab: 8190 kg / 18056 lb
• Standard Operating Weight with ROPS: 7990 kg / 17615 lb
• Operating Weight: 7990 kg / 17615 lb

Operating Specifications

• Standard Compaction Width: 1500 mm / 59 in
• Maximum Compaction Width: 1670 mm / 65 in
• Static Linear Load: 26.9 kg/cm / 151 lb/in
• Travel Speed – Maximum: 12 km/h / 7.5 mile/h

Engine

• Gross Power: 75 kW / 100 HP
• Engine Model: Cat® C3.4B with ACERT Technology

Dimensions

• Overall Length: 4565 mm / 177 in
• Wheel Base: 3300 mm / 130 in
• Height – With ROPS/FOPS: 2980 mm / 117 in
• Overall Width: 1670 mm / 65 in
• Drum Diameter: 1108 mm / 43 in

Vibratory System

• Drum Width: 1500 mm / 59 in
• Vibration Selection: Independent per drum, front only, rear only, both
• Centrifugal Force per Drum – Maximum: 76.9 kN / 17288 lb
• Centrifugal Force per Drum – Minimum: 30.2 kN / 6789 lb
• Nominal Amplitude – High: 0.64 mm / 0.025 in
• Nominal Amplitude – Low: 0.25 mm / 0.01 in

Service Refill Capacities

• Fuel Tank Capacity: 208 l / 55 gal (US)
• Water Spray Tank Capacity: 742 l / 196 gal (US)
