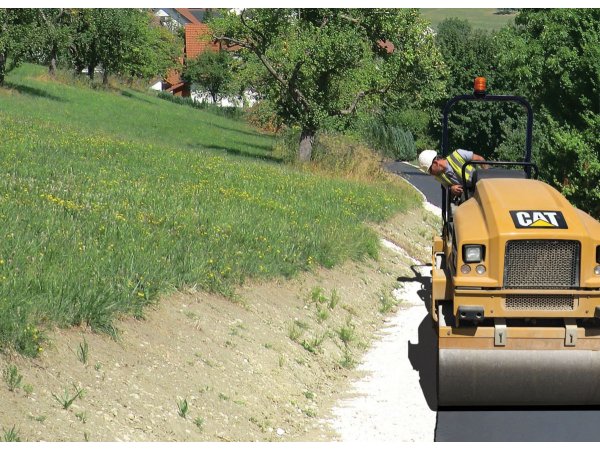

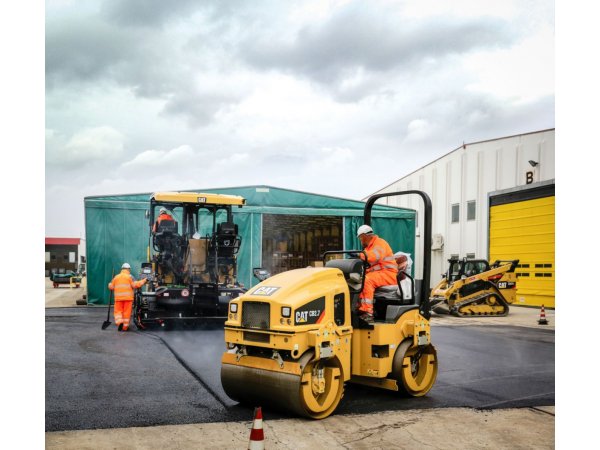

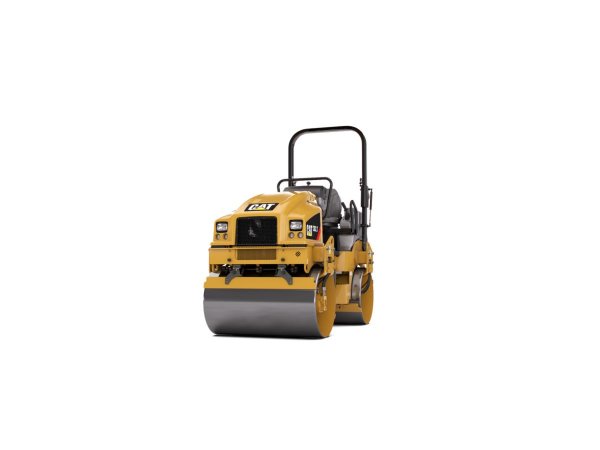

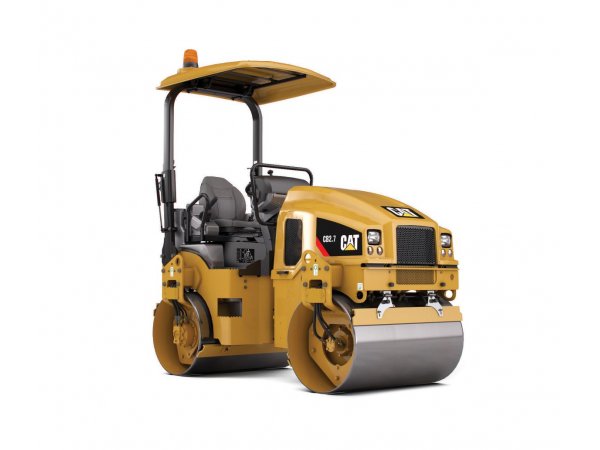

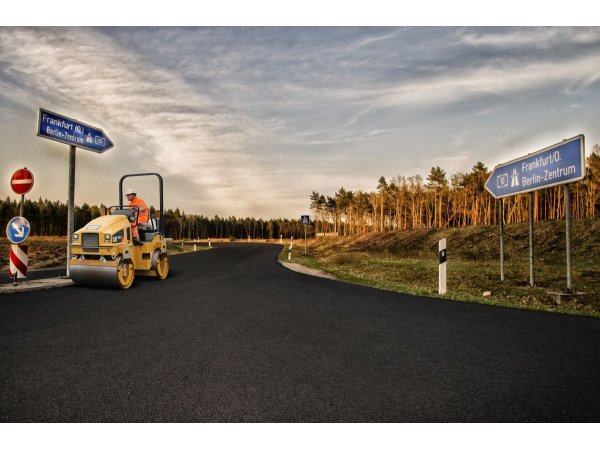

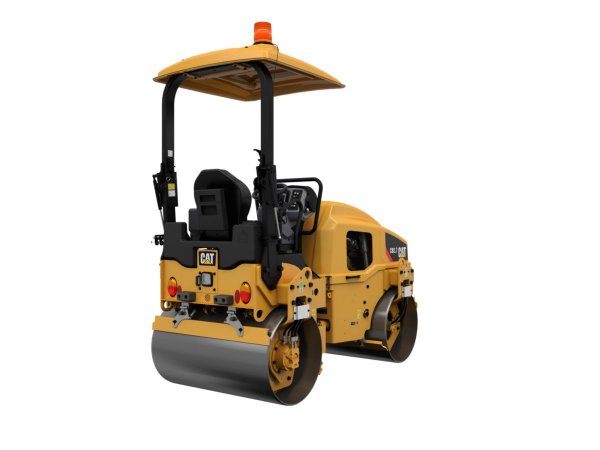

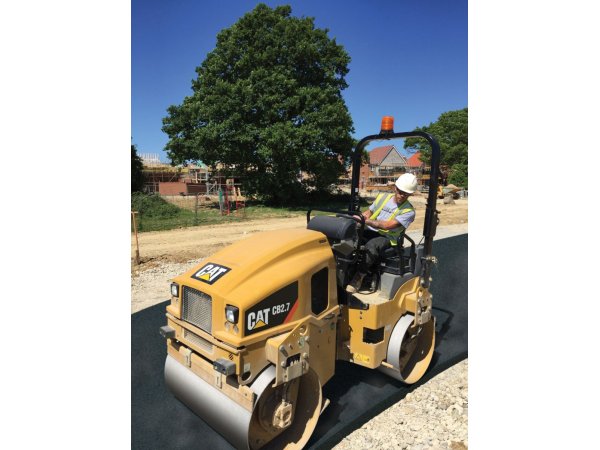

The CB2.7 is a 2.7 to 3 metric ton compactor with 1200 mm (47″) drums. It’s a versatile machine that can be used as the only vibratory roller on small sized jobs or on larger jobs as a support roller for high-production rollers. Its high amplitude and drum width give it the capacity to achieve a tons-per-day production rate that make it an excellent match for shoulders, small parking lots, lane additions, or other similar sized jobs.

Informações Tećnicas

• Gross Power: 22.9 kW
• Operating Weight: 2510 kg
• Standard Compaction Width: 1200 mm

Mais informações

Weights

• Operating Weight: 2510 kg / 5533 lb
• Maximum Operating Weight: 3088 kg / 6808 lb

Operating Specifications

• Standard Compaction Width: 1200 mm / 47 in
• Drum Offset: 40 mm / 1.5 in
• Static Linear Load: 12.6 kg/cm / 70.6 lb/in
• Travel Speed – Maximum: 12 km/h / 7.5 mile/h

Engine

• Gross Power: 22.9 kW / 30.7 HP
• Engine Model: C1.5

Dimensions

• Overall Length: 2575 mm / 101 in
• Wheel Base: 1800 mm / 71 in
• Overall Width: 1312 mm / 52 in
• Height – ROPS: 2700 mm / 106 in

Vibratory System

• Centrifugal Force per Drum – Maximum: 30 kN / 6744 lb
• Centrifugal Force per Drum – Minimum: 14.7 kN / 3305 lb
• Frequency: 60/48 Hz (3,600/2,880 vpm)
• Nominal Amplitude – High: 0.56 mm / 0.022 in

Service Refill Capacities

• Fuel Tank Capacity: 60 l / 15.9 gal (US)
• Water Spray Tank Capacity: 200 l / 52.8 gal (US)
