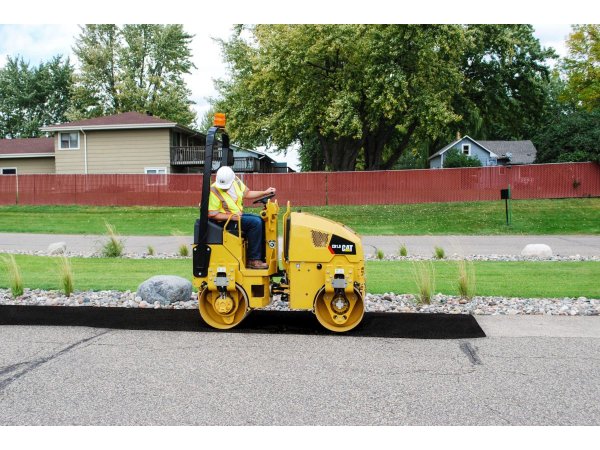

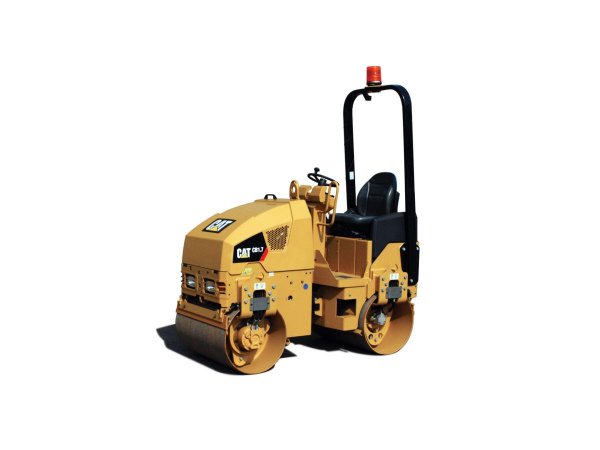

The CB1.8 is a 1.8 metric ton utility roller with 1000 mm (39”) tandem vibratory drums.

Informações Tećnicas

• Gross Power: 18.4 kW
• Operating Weight: 1735 kg
• Standard Compaction Width: 1000 mm

Mais informações

Weights

• Operating Weight: 1735 kg / 3825 lb

Operating Specifications

• Standard Compaction Width: 1000 mm / 39 in
• Curb Clearance: 403 mm / 16 in
• Ground Clearance: 251 mm / 10 in
• Static Linear Load: 9.1 kg/cm / 63 lb/in
• Travel Speed – Maximum: 8.6 km/h / 5.3 mile/h

Engine

• Gross Power: 18.4 kW / 24.7 HP
• Engine Model: Cat C1.1

Dimensions

• Overall Length: 2040 mm / 80 in
• Overall Width: 1112 mm / 44 in
• Drum Diameter: 575 mm / 22.5 in
• Drum Width: 1000 mm / 39 in
• Maximum Machine Height: 2400 mm / 94.5 in

Vibratory System

• Frequency: 57 Hz / 3420 V/m
• Centrifugal Force per Drum – Maximum: 13.6 kN / 3057 lb
• Nominal Amplitude – High: 0.47 mm / 0.018 in

Service Refill Capacities

• Fuel Tank Capacity: 30 l / 7.9 gal (US)
• Water Spray Tank Capacity: 145 l / 38 gal (US)
