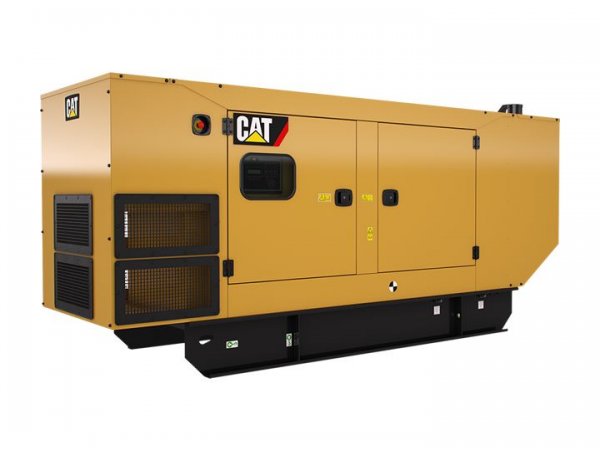

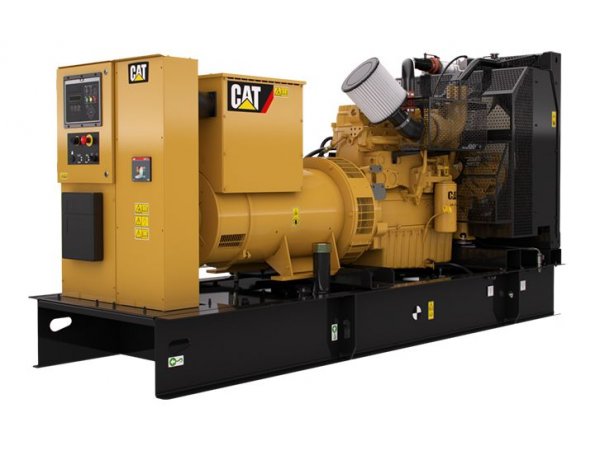

C9 (50 Hz) – GRUPOS GERADORES
- ColeçãoGRUPOS GERADORES
Descrição
Caterpillar is leading the power generation marketplace with Power Solutions engineered to deliver unmatched flexibility, expandability, reliability, and cost-effectiveness.
Informações Tećnicas
- Minimum Rating: 230 kVA
- Maximum Rating: 330 kVA
- Emissions/Fuel Strategy: EU Stage IIIA, Low Fuel Consumption, U.S. EPA Certified for Stationary Emergency Use only ( Tier 3 Nonroad Equivalent Emission Standards)
Mais informações
Generator Set Specifications
- Minimum Rating: 230 kVA
- Maximum Rating: 330 kVA
- Voltage: 220 to 480 Volts
- Frequency: 50 Hz
- Speed: 1500 rpm
- Emissions/Fuel Strategy: EU Stage IIIA
- Length – Maximum: 3988 mm / 157 in
- Width – Maximum: 1207 mm / 47.5 in
- Height – Maximum: 1867 mm / 73.5 in
- Duty Cycle: Standby, Prime
Generator Set Configurations
- Emissions/Fuel Strategy: EU Stage IIIA, Low Fuel Consumption, U.S. EPA Certified for Stationary Emergency Use only ( Tier 3 Nonroad Equivalent Emission Standards)
Engine Specifications
- Engine Model: C9 ATAAC, I-6, 4-Stroke Water-Cooled Diesel
- Displacement: 8.8 l / 537.01 in³
- Fuel System: Hydraulic electronic unit injection
- Aspiration: Air to Air Aftercooled
- Governor Type: Adem™A4
- Compression Ratio: 16.1:1
- Bore: 112 mm / 4.41 in
- Stroke: 149 mm / 5.87 in
Generator Set Dimensions
- Length – Maximum: 3988 mm / 157 in
- Width – Maximum: 1207 mm / 47.5 in
- Height – Maximum: 1867 mm / 73.5 in
Dimensions
- Length – Maximum: 3988 mm / 157 in
- Width – Maximum: 1207 mm / 47.5 in
- Height – Maximum: 1867 mm / 73.5 in
