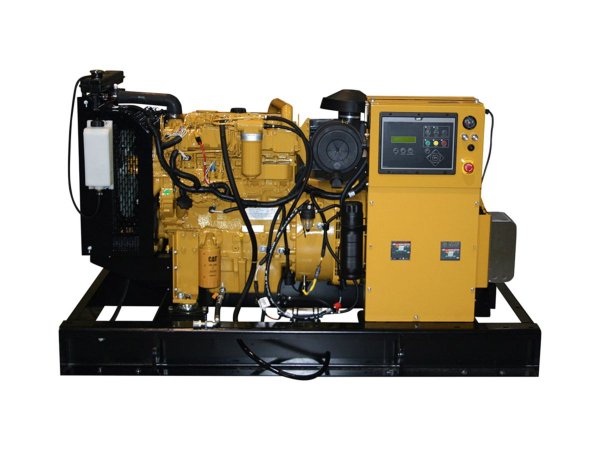

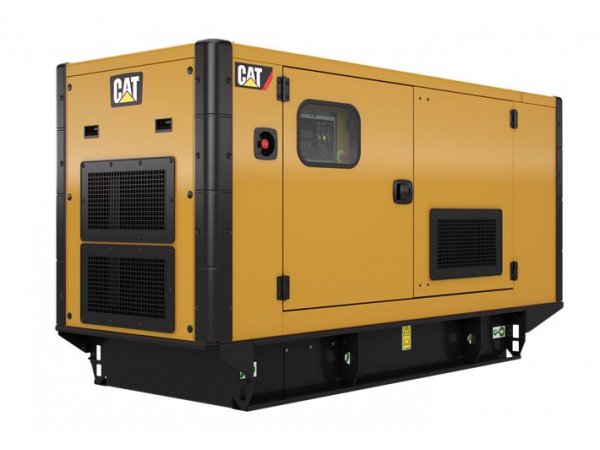

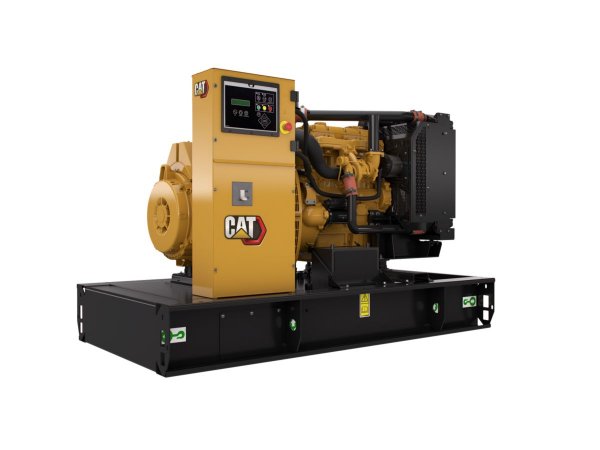

C4.4 (50 Hz) - GRUPOS GERADORES
- ColeçãoGRUPOS GERADORES
Descrição
Caterpillar is leading the power generation marketplace with Power Solutions engineered to deliver unmatched flexibility, expandability, reliability, and cost-effectiveness.
Informações Tećnicas
- Minimum Rating: 50 kVA
- Maximum Rating: 110 kVA
- Emissions/Fuel Strategy: Non Regulated, EU Stage II and EU Stage IIIA
Mais informações
Generator Set Specifications
- Minimum Rating: 50 kVA
- Maximum Rating: 110 kVA
- Voltage: 110 to 480 Volts
- Frequency: 50 Hz
- Speed: 1500 rpm
- Emissions/Fuel Strategy: EU Stage II & R96/EUIIIa
- Length - Maximum: 1925 mm / 75.8 in
- Width - Maximum: 1120 mm / 44.1 in
- Height - Maximum: 1361 mm / 53.6 in
- Duty Cycle: Standby, Prime
Generator Set Configurations
- Emissions/Fuel Strategy: Non Regulated, EU Stage II and EU Stage IIIA
Engine Specifications
- Engine Model: Cat® C4.4
- Displacement: 4.4 l / 268.5 in³
- Fuel System: Direct Injection or Common Rail
- Governor Type: Mechanical
- Compression Ratio: 16.2:1, 17.25:1, 18.2:1 or 18.3:1
- Bore: 105 mm / 4.1 in
- Stroke: 127 mm / 5 in
- Aspiration: Turbocharged
Generator Set Dimensions
- Length - Maximum: 1925 mm / 75.8 in
- Width - Maximum: 1120 mm / 44.1 in
- Height - Maximum: 1361 mm / 53.6 in
Dimensions
- Length - Maximum: 1925 mm / 75.8 in
- Width - Maximum: 1120 mm / 44.1 in
- Height - Maximum: 1361 mm / 53.6 in
