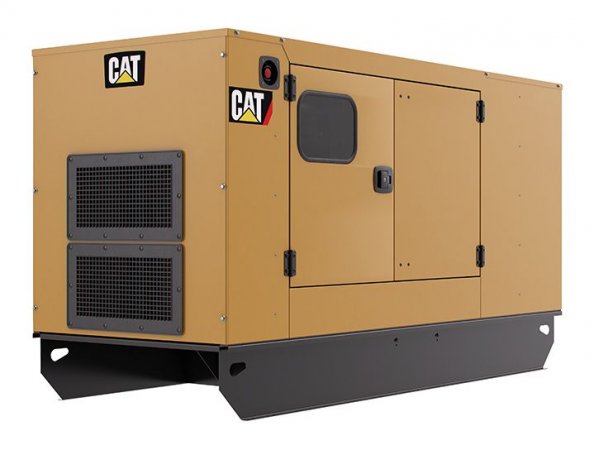

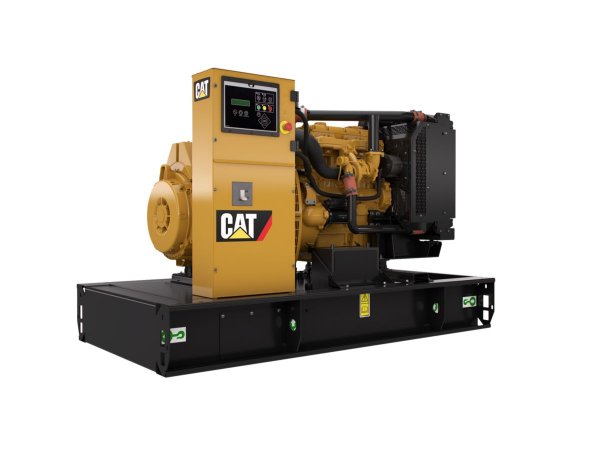

C3.3 (60 Hz) - GRUPOS GERADORES
- ColeçãoGRUPOS GERADORES
Descrição
Caterpillar is leading the power generation marketplace with Power Solutions engineered to deliver unmatched flexibility, expandability, reliability, and cost-effectiveness.
Informações Tećnicas
- Minimum Rating: 27.0 ekW
- Maximum Rating: 60.0 ekW
- Emissions/Fuel Strategy: EU Stage II & R96/EUIIIa
Mais informações
Generator Set Specifications
- Minimum Rating: 27.0 ekW
- Maximum Rating: 60.0 ekW
- Emissions/Fuel Strategy: EU Stage II & R96/EUIIIa
- Voltage: 110 to 480 Volts
- Frequency: 60 Hz
- Speed: 1800 rpm
- Duty Cycle: Standby, Prime
Engine Specifications
- Engine Model: Cat® C3.3
- Bore: 105 mm / 4.1 in
- Stroke: 127 mm / 5 in
- Displacement: 3.3 l / 201.4 in³
- Compression Ratio: 17.25:1, 19.25:1
- Aspiration: Turbocharged
- Fuel System: Direct Injection
- Governor Type: Mechanical
Generator Set Dimensions
- Length - Maximum: 1115 mm / 43.9 in
- Width - Maximum: 970 mm / 38.2 in
- Height - Maximum: 1361 mm / 53.6 in
