Caterpillar is leading the power generation marketplace with Power Solutions engineered to deliver unmatched flexibility, expandability, reliability, and cost-effectiveness.

Informações Tećnicas

• Minimum Rating: 2500 ekW
• Maximum Rating: 3100 ekW
• Emissions/Fuel Strategy: Low Fuel,Tier 2

Mais informações

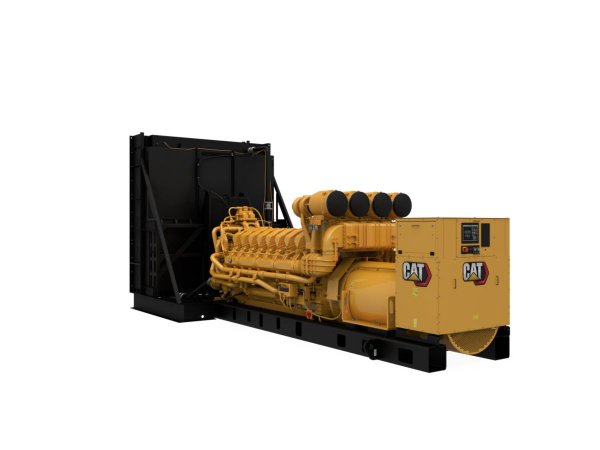

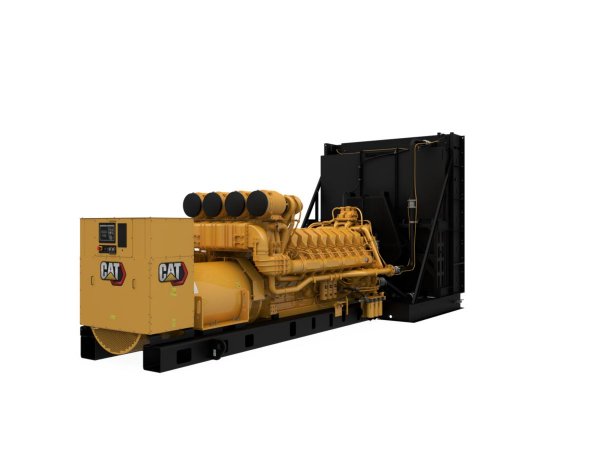

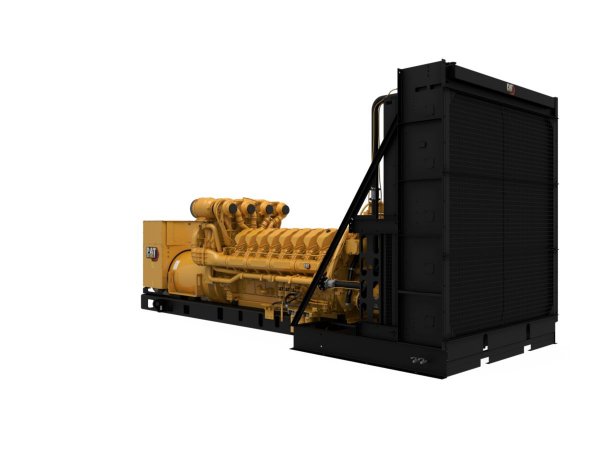

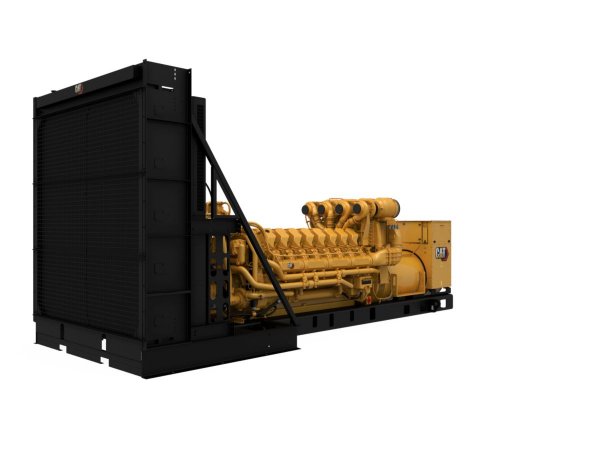

Generator Set Specifications

• Minimum Rating: 2500 ekW
• Maximum Rating: 3100 ekW
• Emissions/Fuel Strategy: Low Fuel,Tier 2
• Voltage: 480 to 13800 Volts
• Frequency: 60 Hz
• Speed: 1800 RPM
• Duty Cycle: Standby, Mission Critical, Prime, Continuous

Engine Specifications

• Engine Model: C175-16 SCAC, V-16, 4-Stroke Water-Cooled Diesel
• Bore: 175 mm / 6.89 in
• Stroke: 220 mm / 8.66 in
• Displacement: 84.7 l / 6456.31 in³
• Compression Ratio: 16:07:01
• Aspiration: Turbo Aftercooled
• Fuel System: Common Rail
• Governor Type: ADEM™ A4

Generator Set Dimensions

• Length – Minimum: 6137 mm / 241.6 in
• Length – Maximum: 7947 mm / 312.9 in
• Width – Minimum: 2110 mm / 83.1 in
• Width – Maximum: 2889 mm / 113.7 in
• Height – Minimum: 2211 mm / 87 in
• Height – Maximum: 3410 mm / 134.3 in
• Dry Weight – Genset (minimum): 19391 kg / 42750 lb
• Dry Weight – Genset (maximum): 22906 kg / 50500 lb
