Caterpillar is leading the power generation marketplace with Power Solutions engineered to deliver unmatched flexibility, expandability, reliability, and cost-effectiveness.

Informações Tećnicas

• Minimum Rating: 2500 kVA
• Maximum Rating: 3100 kVA
• Emissions/Fuel Strategy: Low Fuel, Low Emissions

Mais informações

Engine Specifications

• Compression Ratio: 16:07:01
• Engine Model: C175-16 SCAC, V-16, 4-Stroke Water-Cooled Diesel
• Displacement: 84.7 l / 5166.88 in³
• Fuel System: Common Rail
• Aspiration: Turbo Aftercooled
• Governor Type: ADEM™ A4
• Compression Ratio 50 Hz: 16:07:01
• Bore: 175 mm / 6.89 in
• Stroke: 220 mm / 8.66 in
• Compression Ratio 60 Hz: 16.7:1

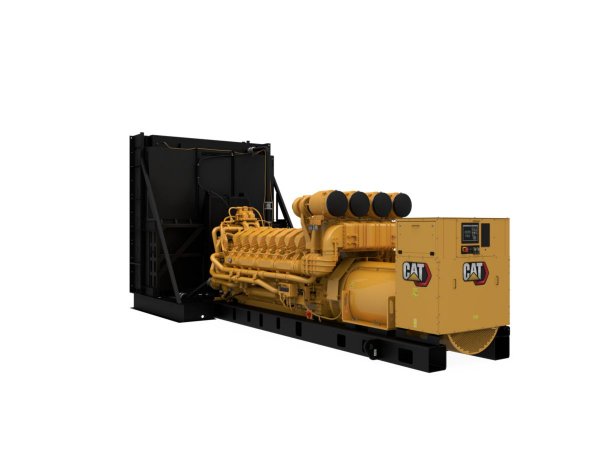

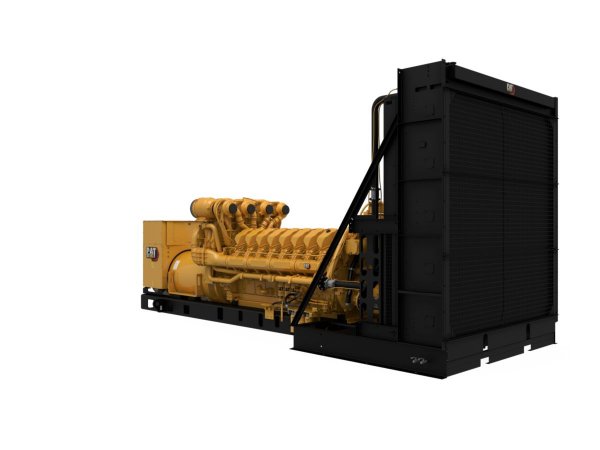

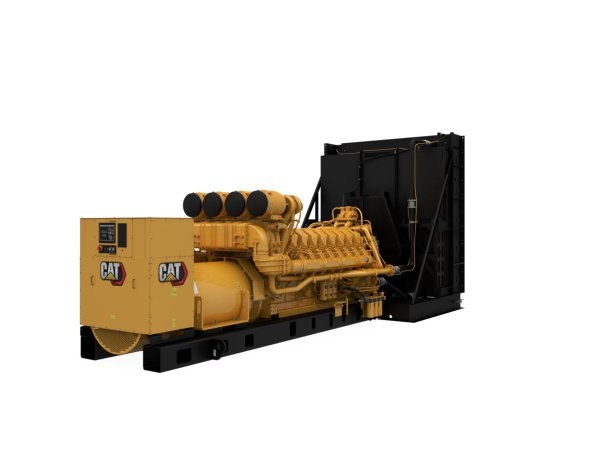

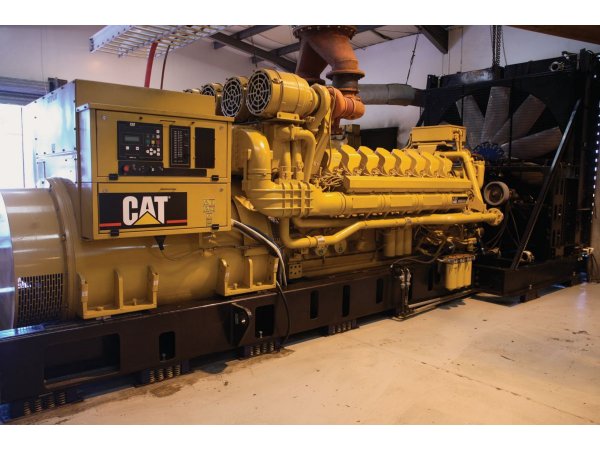

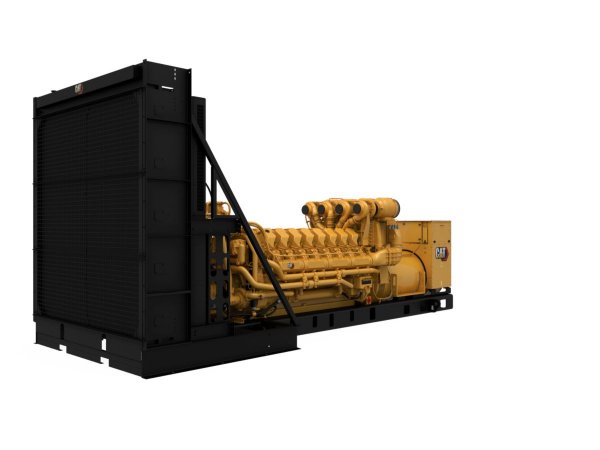

Generator Set Specifications

• Minimum Rating: 2500 kVA
• Maximum Rating: 3100 kVA
• Voltage: 380 to 11000 Volts
• Frequency: 50 Hz
• Speed: 1500 rpm
• Duty Cycle: Standby, Mission Critical, Prime, Continuous
• Emissions/Fuel Strategy: Low Fuel, Low Emissions
• Length – Maximum: 6137 mm / 241.6 in
• Width – Maximum: 2110 mm / 83 in
• Height – Maximum: 2211 mm / 87 in
• Dry Weight – Genset (maximum): NAN kg / 42750 lb

Dimensions

• Length – Maximum: 7900 mm / 311 in
• Width – Maximum: 2786 mm / 108.5 in
• Height – Maximum: 3307 mm / 130.2 in
• Dry Weight – Genset (maximum): 23020 kg / 50750 lb
• Length – Minimum: 6137 mm / 241.6 in
• Width – Minimum: 2110 mm / 83 in
• Height – Minimum: 2211 mm / 87 in
• Dry Weight – Genset (minimum): 19391 kg / 42750 lb

Generator Set Dimensions

• Length – Minimum: 6137 mm / 241.6 in
• Length – Maximum: 7900 mm / 311 in
• Width – Minimum: 2110 mm / 83 in
• Width – Maximum: 2786 mm / 108.5 in
• Height – Minimum: 2211 mm / 87 in
• Height – Maximum: 3307 mm / 130.2 in
• Dry Weight – Genset (minimum): 19391 kg / 42750 lb
• Dry Weight – Genset (maximum): 23020 kg / 50750 lb
