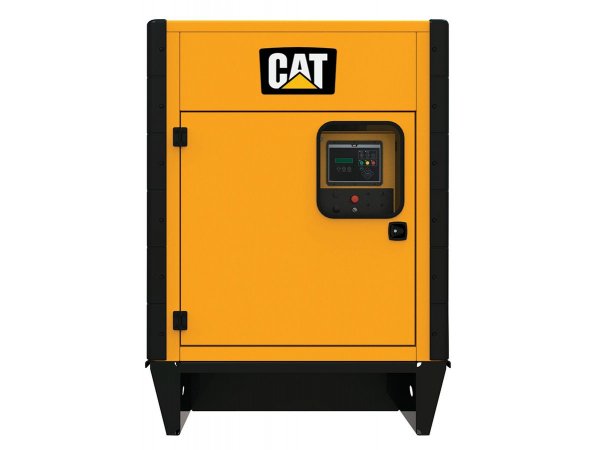

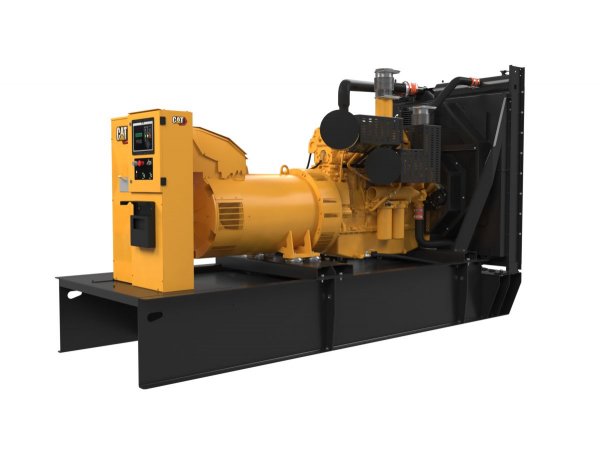

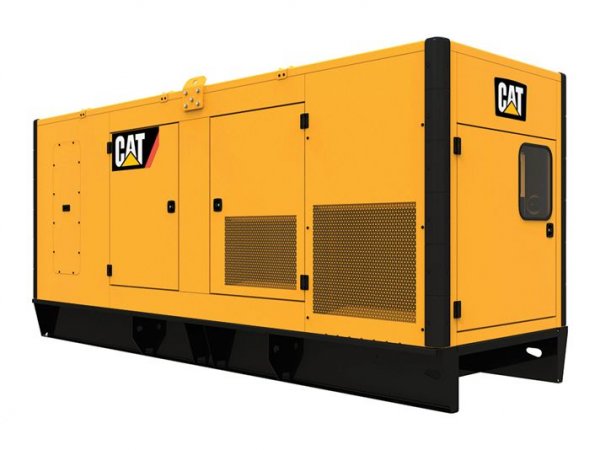

C15 (60 Hz) - GRUPOS GERADORES
- ColeçãoGRUPOS GERADORES
Descrição
Caterpillar is leading the power generation marketplace with Power Solutions engineered to deliver unmatched flexibility, expandability, reliability, and cost-effectiveness.
Informações Tećnicas
- Minimum Rating: 320 ekW
- Maximum Rating: 500 ekW
- Emissions/Fuel Strategy: Low Fuel, Tier 2, Tier 3, EU Stage IIIA
Mais informações
Generator Set Specifications
- Minimum Rating: 320 ekW
- Maximum Rating: 500 ekW
- Emissions/Fuel Strategy: Low Fuel, Tier 2, Tier 3, EU Stage IIIA
- Voltage: 208 to 600 Volts
- Frequency: 60 Hz
- Speed: 1800 RPM
- Duty Cycle: Standby, Prime
Engine Specifications
- Engine Model: C15 ATAAC, I-6, 4-Stroke Water-Cooled Diesel
- Bore: 137.2 mm / 5.4 in
- Stroke: 171.4 mm / 6.75 in
- Displacement: 15.2 l / 927.56 in³
- Compression Ratio: 16.1:1
- Aspiration: Air to Air Aftercooled
- Fuel System: MEUI
- Governor Type: Adem™A4
Generator Set Dimensions
- Length - Maximum: 4273 mm / 168.2 in
- Width - Maximum: 2058 mm / 81 in
- Height - Maximum: 2092 mm / 82.4 in
