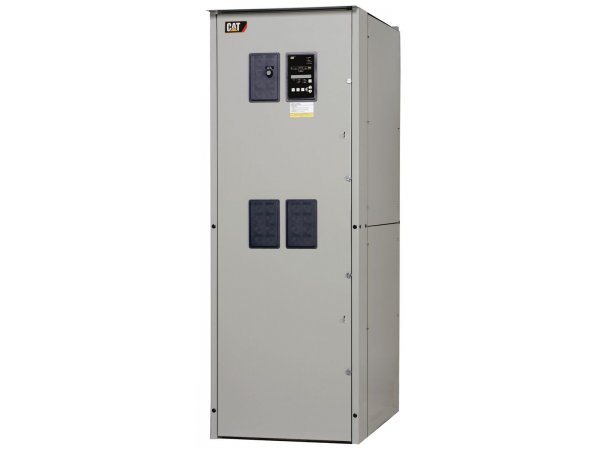

Cat transfer switches are designed for a variety of standby power applications. They provide flexibility, reliability and value in a compact package. A Bypass Isolation Automatic Transfer Switch (ATS) provides fully functioning transfer in applications where emergency power to critical loads must be maintained at all times with no interruption. This type of design allows for inspection, maintenance or replacement of the power switching mechanisms with no interruption in electrical service. Breaker based Bypass isolation ATS are available from 200A to 5,000A.

Informações Tećnicas

• Rating Range: 200-5000A
• Transfer Type: Bypass isolation, Closed transition
• Switch Type: Power Breaker

Mais informações

Technical Summary

• Rating Range: 200-5000A
• Transfer Type: Bypass isolation, Closed transition
• Switch Type: Power Breaker

Ratings

• Control Power: 200-5000A, 2-, 3-, 4-pole100% rated Short
• System Voltage Application: 120-600 Vac 50/60 Hz
• Time Withstand: 85,000 for 30 cycles
• Withstand: 100 kAIC at 600V, 3 cycles
• Applicable Testing: CSA C22.2 No. 178 certified UL 1008 listed up to 3200A4000A, and 5000A UL 891 listed
