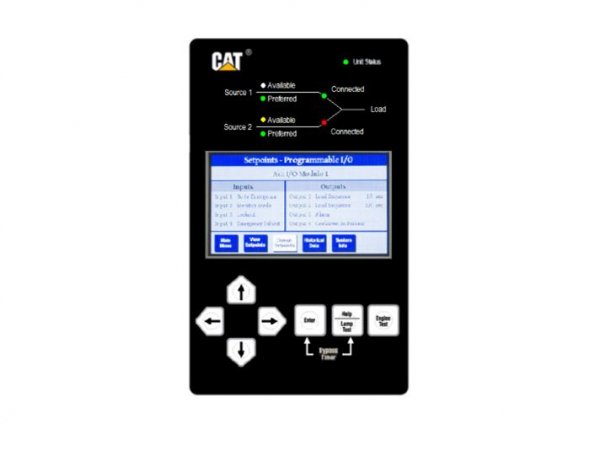

The ATC-900 C9ontroller is a programmable microprocessor-based monitoring device for use on Cat transfer switches. Data access and programming operations are performed using the ATC-900's touch sensitive function buttons in conjunction with an easy-to-read illuminated alphanumeric LED display. Both the functional buttons and the display window are part of the device's door mounted front panel. A built in Help button provides user assistance in the form of message displays.The communication option permits monitoring and control of several transfer switches, locally or remotely from a single point. Depending on the application, the user can customize the ATC-800 to meet the particular application. The ATC-900 is equipped to display historical information either via the front panel or over mod bus communications to a personal computer. Source 1 and Source 2 run time, available time and connect time are available, as well as load energized time, number of transfers, date, time and reason for the last 16 transfers.

Informações Tećnicas

• Rating Range: 120 to 600V, single phase and three phase @ 50/60 Hz
• Transfer Type: Switch application dependent
• Switch Type: Switch application dependent

Mais informações

Technical Summary

• Rating Range: 120 to 600V, single phase and three phase @ 50/60 Hz
• Transfer Type: Switch application dependent
• Switch Type: Switch application dependent

ATC Controller Specifications

• Input Control Voltage: 120Vac (50/60 Hz) (operating range 65 to 160 Vac)
• Voltage Measurements of Utility: Source 1, Source 2 and Load(VAB, VBC, VCA for Three Phase System)
• Voltage Measurement Range: 0 to 700 Vac
• Voltage Measurement Accuracy: +/-1% of full scale
• Frequency Measurements Of: Source 1 and Source 2
• Frequency Measurement Range: 40 Hz to 80 Hz
• Frequency Measurement Accuracy: +/- 0.1 Hz
• Undervoltage Dropout: Breaker Style 50 to 97% of Nominal System VoltageContactor Style - 78 to 97%
• Undervoltage Pickup: (Dropout +2%) to 99% of Nominal System Voltage
• Underfrequency Dropout Range: 90 to 97% of Nominal System Frequency
• Underfrequency Pickup Range: (Dropout +1 Hz) to 99% of Nominal System Frequency
• Overfrequency Dropout Range: 103 to 110% of Nominal System Frequency
• Overfrequency Pickup Range: 101% to (Dropout +1 Hz) of nominal system frequency
• Operating Temperature Range: -20 to 70 degree C (-4 to +158 degree F)
• Operating Humidity: Up to 90% Relative Humidity (non-condensing)
• Enclosure Compatibility: NEMA 12 (std mounting)NEMA 3RUV Resistant Faceplate

Ratings

• System Voltage Application: 120 to 600 Vac (50/60 Hz) (single or three phase)
