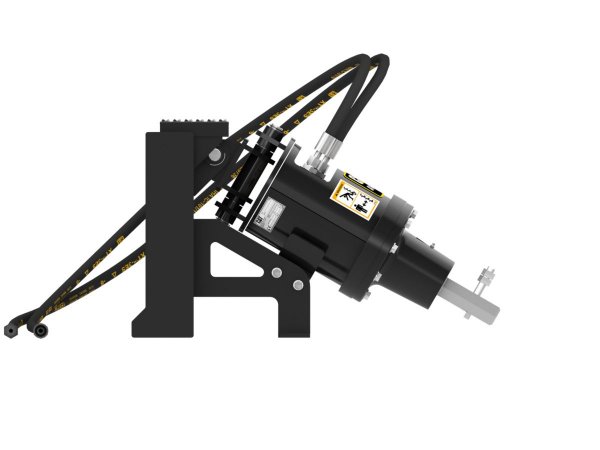

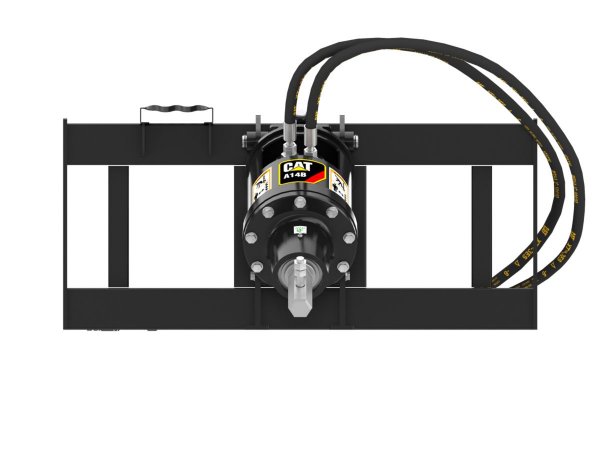

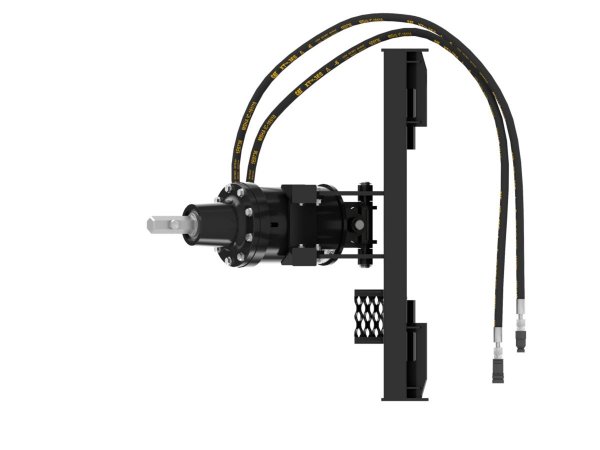

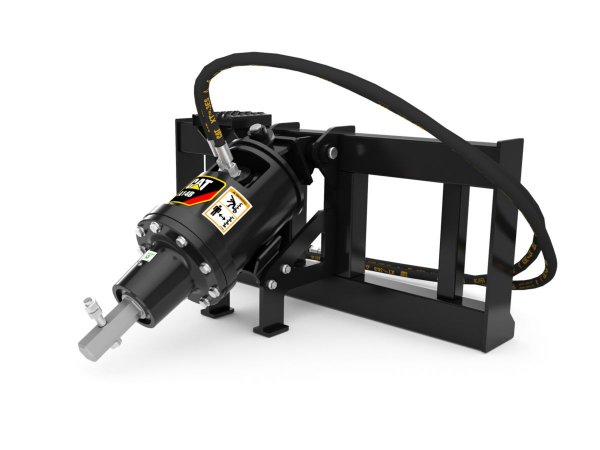

Cat® Augers are used for drilling holes for footings, fencing, signs, trees and shrubs in construction, agricultural, and landscaping applications. They are designed with the right amount of speed and torque for maximum productivity in a broad range of soil types.

Informações Tećnicas

• Drive Shaft Torque at Maximum Pressure: 2304 N·m
• Drive Method: Gerotor Motor - Direct Drive
• Mounting Bracket Design: Skid Steer Loader, Compact Wheel Loader

Mais informações

Geral

• Optimal Hydraulic Flow: 42-83 L/min (11-22 gpm)
• Overall Height: 1020 mm / 40 in
• Weight: 192 kg / 423 lb
• Hex Output Shaft Size: 51 mm / 2 in
• Drive Shaft Torque at Maximum Pressure: 2304 N·m / 1700 lb/ft
• Drive Method: Gerotor Motor - Direct Drive
• Mounting Bracket Design: Skid Steer Loader, Compact Wheel Loader
• Required Hydraulics: Standard Flow
• Optimal Hydraulic Pressure: 145-235 bar (2100-3400 psi)
• Overall Width - With Bracket: 1152 mm / 45 in
• Overall Length - With Bracket: 598 mm / 24 in
• Housing Diameter: 252 mm / 10 in
• Swing Range: 102 degrees
• Motor Displacement: 629 cm³ / 38 in³
• Bit Speed at Maximum Flow: 127 rpm
• Swing Range (fore/aft): 120 degrees
• Swing Range (L/R): 102 degrees
