Descrição

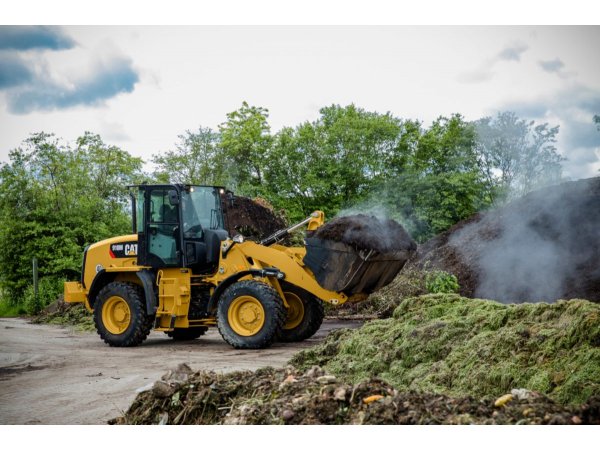

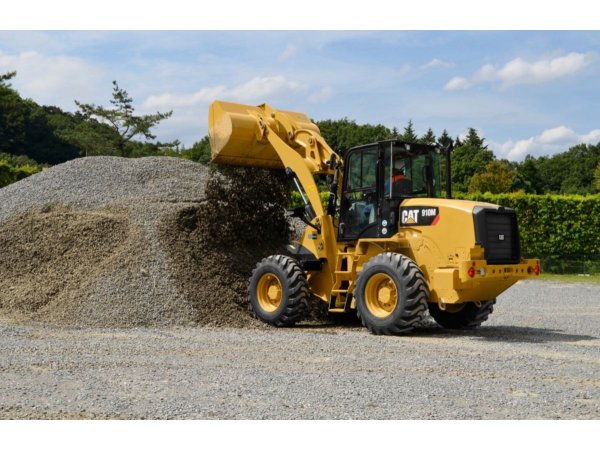

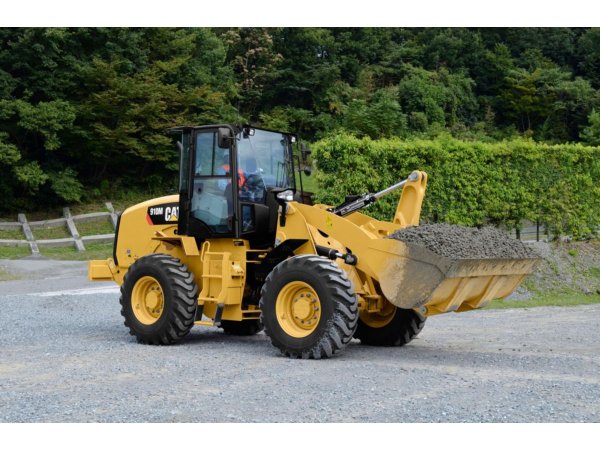

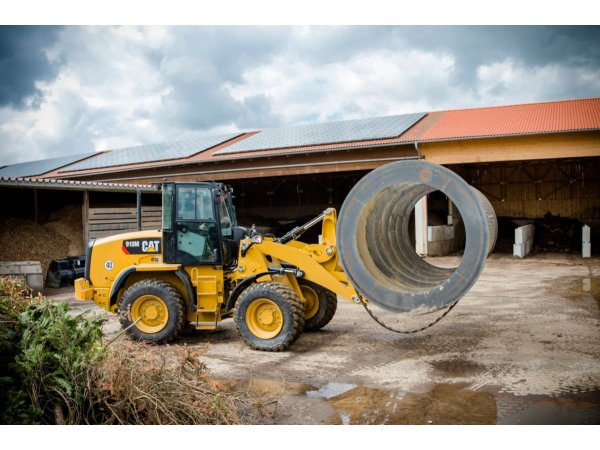

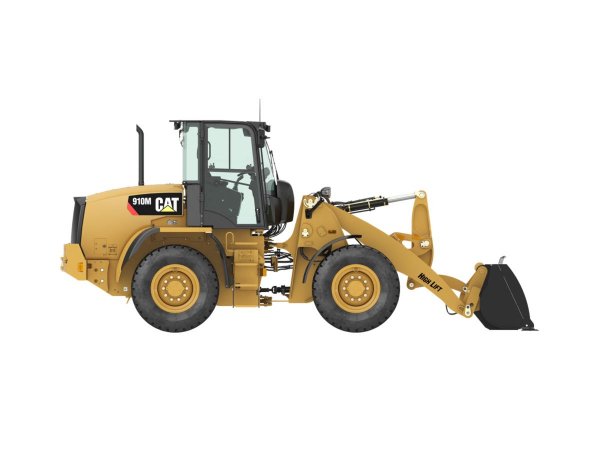

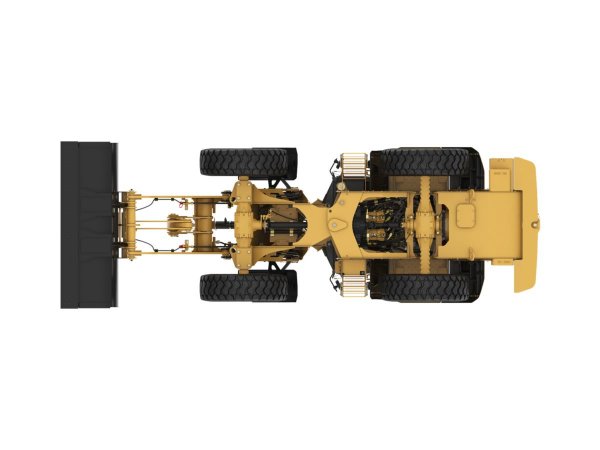

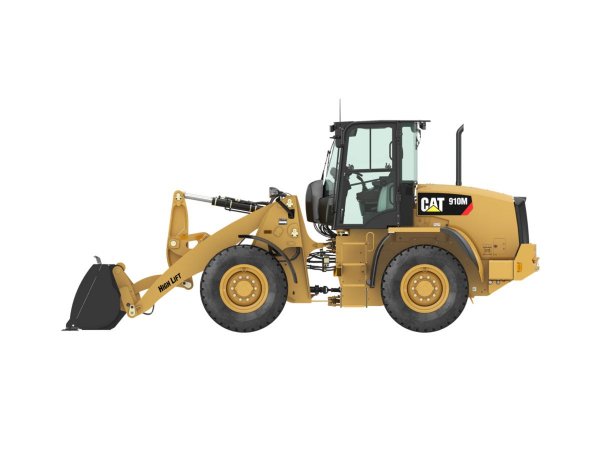

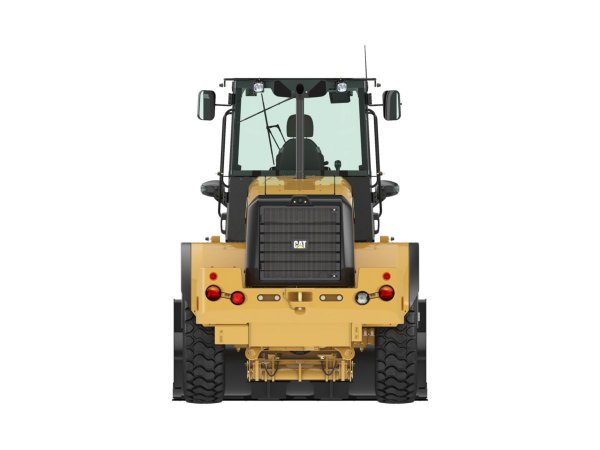

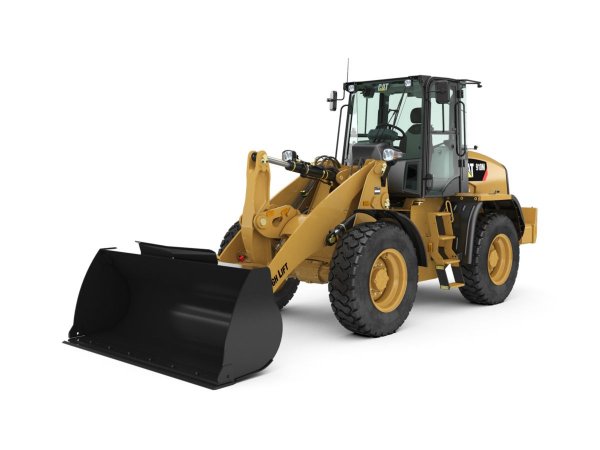

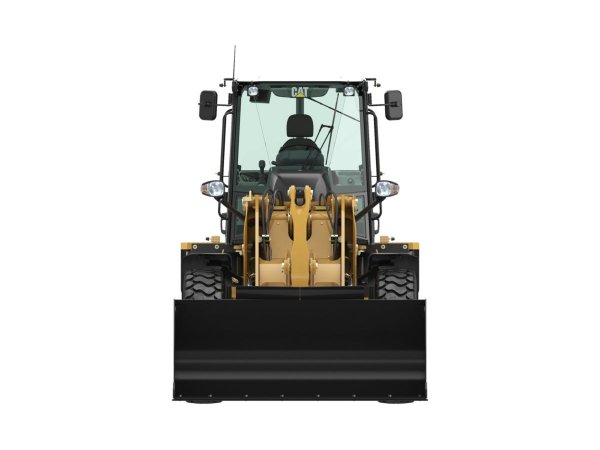

The Cat® 910M Wheel Loader sets the standard for productivity, fuel efficiency and operator comfort. The improved optimized Z-bar loader linkage delivers the quick loading performance of a traditional Z-bar with the parallelism and load handling capability of a toolcarrier.

Informações Tećnicas

  • Net Power: 72 kW
  • Operating Weight: 8116 kg
  • Bucket Capacities: 1.3 m3-1.9 m3 (1.7 yd3-2.5 yd3)

Mais informações

Engine

  • Net Power: 72 kW / 97 HP
  • Engine Model: Cat C4.4 ACERT�
  • Maximum Gross Power – ISO 14396: 74 kW / 100 HP
  • Maximum Gross Power – ISO 14396 (DIN): 74 kW / 101 HP
  • Maximum Gross Power – Maximum Engine Speed: 2350 r/min / 2350 r/min
  • Maximum Gross Power – SAE J1995: 76 kW / 102 HP
  • Rated Net Power – Rated Engine Speed: 2200 r/min / 2200 r/min
  • Rated Net Power – SAE J1349: 72 kW / 96 HP
  • Maximum Gross Power: 74 kW / 100 HP
  • Bore: 105 mm / 4.13 in
  • Displacement: 4.4 l / 268 in³
  • Emissions: Engine meets U.S. EPA Tier 4 Final/EU Stage IV emission standards.
  • Maximum Gross Torque – ISO 14396: 450 N·m / 332 ft·lbf
  • Maximum Gross Torque – SAE J1995: 455 N·m / 336 ft·lbf
  • Maximum Net Torque – ISO 9249: 446 N·m / 329 ft·lbf
  • Maximum Net Torque – SAE J1349: 441 N·m / 325 ft·lbf
  • Note: Net power advertised is the power available at the flywheel plus front drive implement pump when the engine is equipped with fan, air cleaner, muffler and alternator.
  • Rated Net Power – ISO 9249: 72 kW / 97 HP
  • Rated Net Power – ISO 9249 (DIN): 72 kW / 98 HP
  • Stroke: 127 mm / 5 in

Weights

  • Operating Weight: 8116 kg / 17893 lb

Service Refill Capacities

  • Cooling System: 21.5 l / 5.7 gal (US)
  • Fuel Tank: 154 l / 40.7 gal (US)
  • Engine Crankcase: 8.8 l / 2.3 gal (US)
  • Hydraulic System – Including Tank: 98 l / 25.9 gal (US)
  • Axles – Front Center Differential: 7.5 l / 2 gal (US)
  • Axles – Rear Center Differential: 7.5 l / 2 gal (US)
  • Diesel Exhaust Fluid (DEF) Tank: 18.9 l / 5 gal (US)
  • Hydraulic Tank: 55 l / 14.5 gal (US)
  • Note: DEF used in Cat SCR systems must meet the requirements outlined in the International Organization for Standardization (ISO) standard 22241-1.
  • Transmission: 3.4 l / 0.9 gal (US)

Operating Specifications

  • Rated Bucket Capacity: 1.9 m³ / 2.5 yd³

Buckets

  • Bucket Capacities: 1.3 m3-1.9 m3 (1.7 yd3-2.5 yd3)

Cab

  • ROPS: ISO 3471:2008
  • FOPS: ISO 3449:2005 Level II
  • Note (1): Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe.
  • Note (2): The declared dynamic operator sound pressure levels per ISO 6396:2008*, when properly installed and maintained, is 77 dB(A).
  • Note (3): The labelled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC is 103 dB(A).
  • Note (4): *The measurements were conducted with the cab doors and windows closed.

Axles

  • Front: Fixed; Locking differential (standard)
  • Rear: Oscillating �11 degrees; Locking differential (Standard)

Loader Hydraulic System

  • Hydraulic Cycle Time – Dump, at Maximum Reach: 1.4 s / 1.4 s
  • Hydraulic Cycle Time – Float Down, Maximum Lift to Ground Level: 3.7 s / 3.7 s
  • Hydraulic Cycle Time – Rackback: 2.2 s / 2.2 s
  • Hydraulic Cycle Time – Raise, Ground Level to Maximum Lift: 5.2 s / 5.2 s
  • Hydraulic Cycle Time – Total Cycle Time: 12.5 s / 12.5 s
  • Maximum Flow – Implement Pump: 122 l/min / 32 gal/min
  • Maximum Flow – Implement Pump – 3rd Function, Maximum Flow: 90 l/min / 24 gal/min
  • Maximum Flow – Implement Pump – 4th Function, Maximum Flow: 90 l/min / 24 gal/min
  • Maximum Working Pressure – Implement Pump: 23500 kPa / 3408 psi
  • Relief Pressure – Tilt Cylinder: 34000 kPa / 4931 psi
  • Relief Pressure – Tilt Cylinder – 3rd Function Maximum Working Pressure: 21000 kPa / 3046 psi
  • Relief Pressure – Tilt Cylinder – 4th Function Maximum Working Pressure: 21000 kPa / 3046 psi

Steering

  • Maximum Flow – Steering Pump: 66 l/min / 17 gal/min
  • Maximum Working Pressure – Steering Pump: 18500 kPa / 2683 psi
  • Number of Steering Wheel Turns – Full Left to Full Right or Full Right to Full Left: 3.75 turns / 3.75 turns
  • Steering Articulation Angle – Each Direction: 40 ° / 40 °
  • Steering Cycle Times – Full Left to Full Right – At 2,350 rpm: 90 rpm Steering Wheel Speed: 3.2 s / 3.2 s

Tires

  • Note (1): Other tire choices are available. Contact your Cat dealer for details.
  • Note (2): In certain applications, the loader’s productive capabilities may exceed the tire’s tonnes-km/h (ton-mph) capabilities.
  • Note (3): Caterpillar recommends that you consult a tire supplier to evaluate all conditions before selecting a tire model.
  • Other Choices Include: 15.5-R25; 17.5-25 12PR; 17.5-25 12PR L2; 17.5-R25 XHA * L3; 17.5-R25 * L2/L3 PC RM; 17.5-25 16PR L3, 3PC Rim; 17.5-25 GY L2/L3; 17.5-25 12PR L2, SNOW; Flexport�
  • Standard Size: 15.5-25 12PR

Transmission

  • Forward and Reverse – High Range: 40 km/h / 25 mile/h
  • Forward and Reverse – Low Range, Speed Range 1*: 10 km/h / 6.3 mile/h
  • Forward and Reverse – Low Range, Speed Range 2*: 20 km/h / 12.5 mile/h
  • Note: *Creeper Control allows speed control from a stand still up to 10 km/h (6.3 mph). The Creeper Control will only work in Range 1.

Engine – Tier 4 Final/Stage IV

  • Maximum Net Torque – ISO 9249: 446 N·m / 329 ft·lbf
  • Maximum Net Torque – SAE J1349: 441 N·m / 325 ft·lbf
