Caterpillar is leading the power generation marketplace with Power Solutions engineered to deliver unmatched flexibility, expandability, reliability, and cost-effectiveness.

Informações Tećnicas

• Minimum Rating: 1650 ekW
• Maximum Rating: 2000 ekW
• Emissions/Fuel Strategy: Low Fuel Consumption

Mais informações

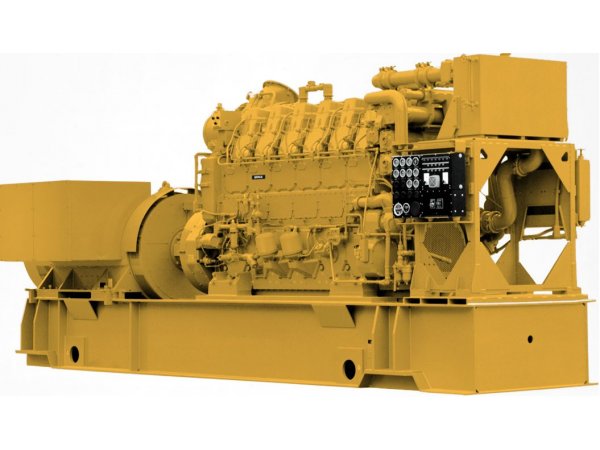

Generator Set Specifications

• Minimum Rating: 1650 ekW
• Maximum Rating: 2000 ekW
• Emissions/Fuel Strategy: Low Fuel Consumption
• Frequency: 60 Hz
• Speed: 900 rpm
• Duty Cycle: Standby, Prime, Continuous

Engine Specifications

• Engine Model: 3606 I-6,4-Stroke Water-Cooled Diesel
• Bore: 280 mm / 11 in
• Stroke: 300 mm / 11.8 in
• Displacement: 6762 l / 111 in³
• Compression Ratio: 13:01
• Aspiration: TA
• Fuel System: Direct unit injection
• Governor Type: Generator Set Monitoring System (GMS)

Generator Set Dimensions

• Length - Maximum: 10261.7 mm / 404 in
• Width - Maximum: 2530.3 mm / 99.62 in
• Height - Maximum: 3977.7 mm / 156.6 in
• Dry Weight - Genset (maximum): 34070 kg / 74970 lb
