Caterpillar is leading the power generation marketplace with Power Solutions engineered to deliver unmatched flexibility, expandability, reliability, and cost-effectiveness.

Informações Tećnicas

• Minimum Rating: 2000 kVA
• Maximum Rating: 2500 kVA
• Emissions/Fuel Strategy: Low Fuel Consumption, Low Emissions

Mais informações

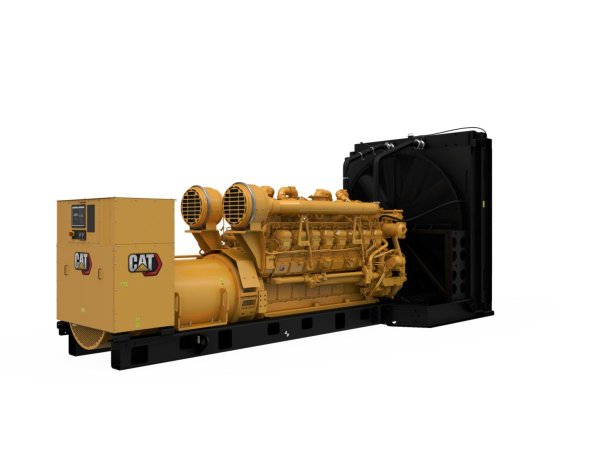

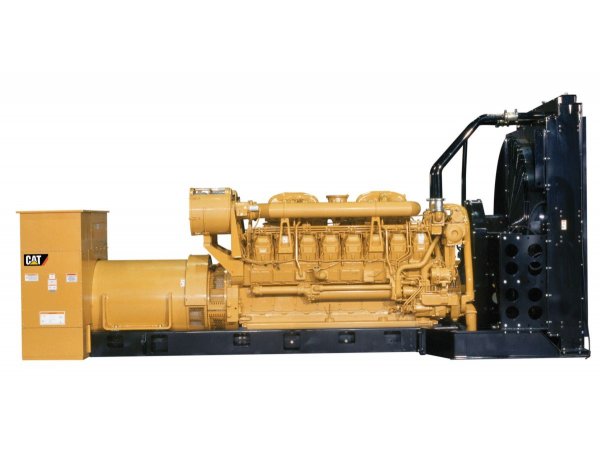

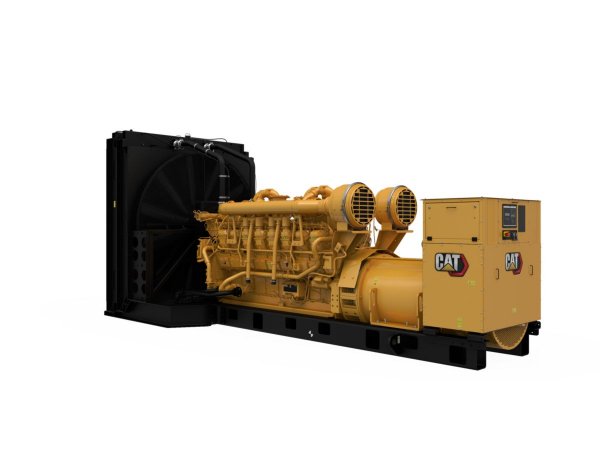

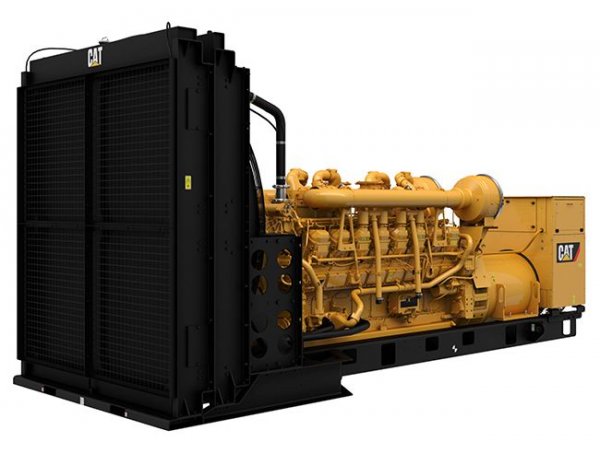

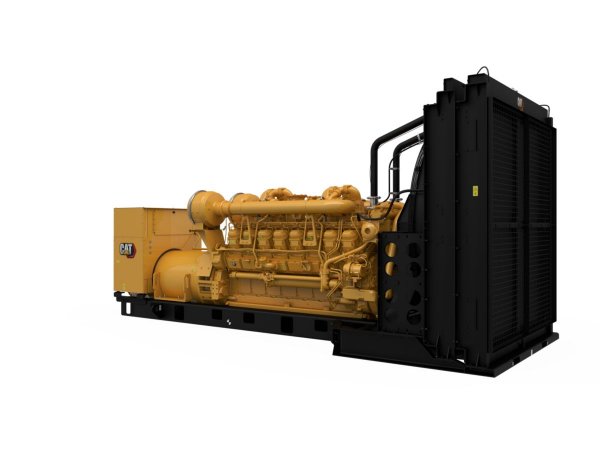

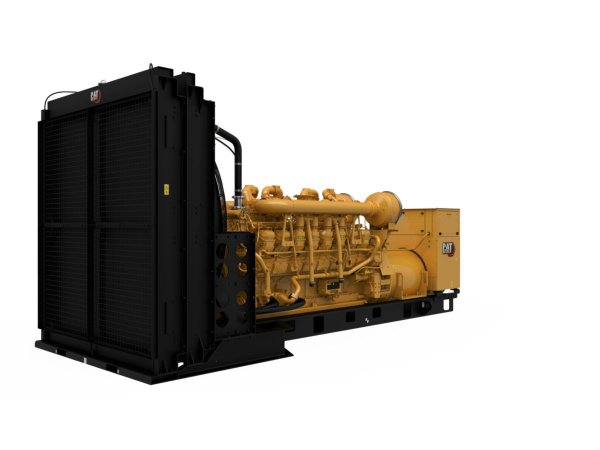

Generator Set Specifications

• Minimum Rating: 2000 kVA
• Maximum Rating: 2500 kVA
• Voltage: 380 to 11000 Volts
• Frequency: 50 Hz
• Speed: 1500 rpm
• Emissions/Fuel Strategy: Low Fuel, Low Emissions
• Length - Maximum: 6377 mm / 251.7 in
• Width - Maximum: 2286 mm / 90 in
• Height - Maximum: 2367 mm / 93.2 in
• Dry Weight - Genset (maximum): 18290 kg / 40320 lb
• Duty Cycle: Standby, Mission Critical, Prime, Continuous

Generator Set Configurations

• Emissions/Fuel Strategy: Low Fuel Consumption, Low Emissions

Engine Specifications

• Engine Model: 3516B TA, V-16, 4-Stroke Water-Cooled Diesel
• Displacement - HD: 78.08 l / 4764.73 in³
• Displacement - Std: 69 l / 4210.64 in³
• Fuel System: Electronic unit injection
• Aspiration: TA
• Governor Type: Adem™3
• Compression Ratio: 15.5:1
• Bore: 170 mm / 6.69 in
• Stroke - Standard: 190 mm / 7.48 in
• Stroke - HD:
• Stroke: 215 mm / 8.46 in
• Displacement: 78.08 l / 4764.73 in

Generator Set Dimensions

• Length - Maximum: 6377 mm / 251.7 in
• Width - Maximum: 2286 mm / 90 in
• Height - Maximum: 2367 mm / 93.2 in
• Dry Weight - Genset (maximum): 18290 kg / 40320 lb
• Length - Minimum: 5928 mm / 233.4 in
• Dry Weight - Genset (minimum): 14470 kg / 31900 lb

Dimensions

• Length - Maximum: 6377 mm / 251.7 in
• Width - Maximum: 2286 mm / 90 in
• Height - Maximum: 2367 mm / 93.2 in
• Dry Weight - Genset (maximum): 18290 kg / 40320 lb
• Length - Minimum: 5928 mm / 233.4 in
• Dry Weight - Genset (minimum): 14470 kg / 31900 lb
