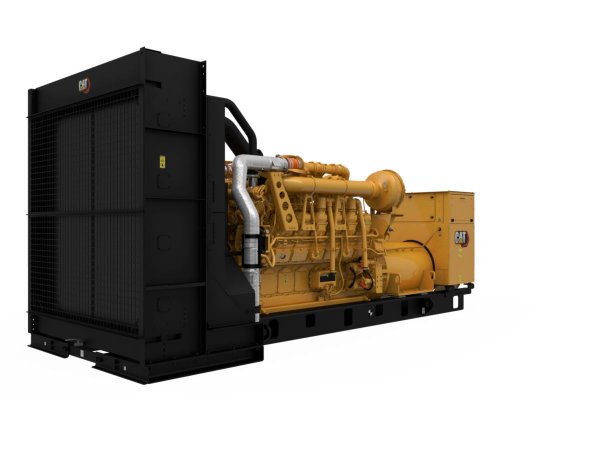

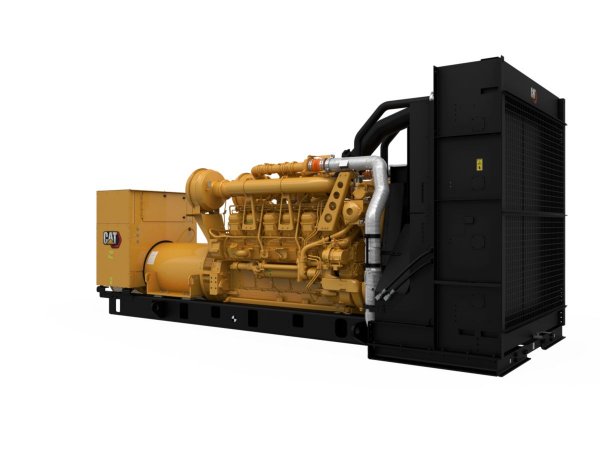

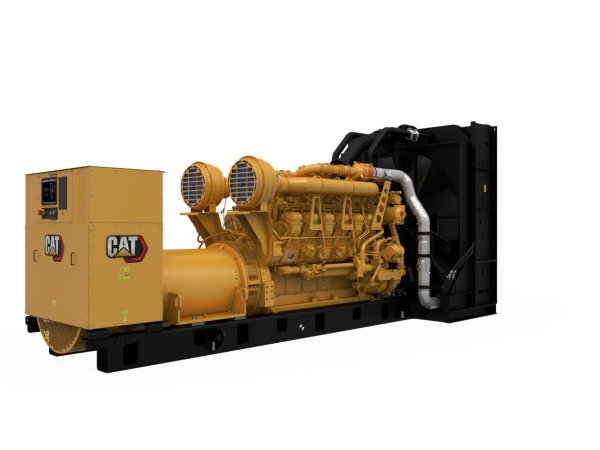

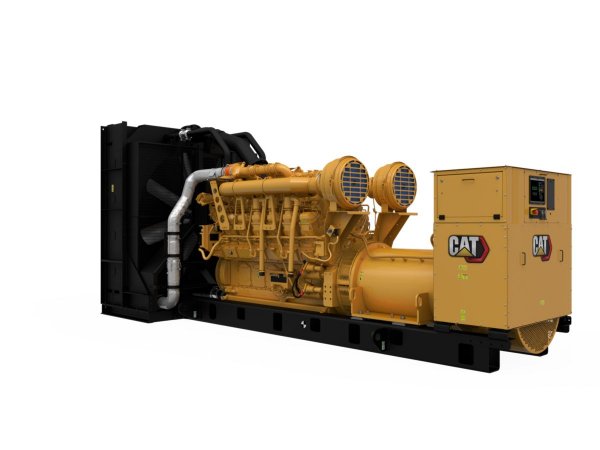

3512C (60 Hz) - GRUPOS GERADORES
- ColeçãoGRUPOS GERADORES
Descrição
Caterpillar is leading the power generation marketplace with Power Solutions engineered to deliver unmatched flexibility, expandability, reliability, and cost-effectiveness.
Informações Tećnicas
- Minimum Rating: 1230 ekW
- Maximum Rating: 1500 ekW
- Emissions/Fuel Strategy: U.S. EPA Certified
Mais informações
Generator Set Specifications
- Minimum Rating: 1230 ekW
- Maximum Rating: 1500 ekW
- Emissions/Fuel Strategy: U.S. EPA Certified
- Voltage: 380 to 13800 Volts
- Frequency: 60 Hz
- Speed: 1800 rpm
- Duty Cycle: Standby, Mission Critical, Prime, Continuous
Engine Specifications
- Engine Model: 3512C ATAAC, V-12, 4-Stroke Water-Cooled Diesel
- Bore: 170 mm / 6.69 in
- Stroke: 190 mm / 7.48 in
- Displacement: 51.8 l / 3161.03 in³
- Compression Ratio: 14.7:1
- Aspiration: TA
- Fuel System: Electronic unit injection
- Governor Type: Adem™3
Generator Set Dimensions
- Length - Maximum: 6319.4 mm / 248.6 in
- Width - Maximum: 2281.2 mm / 89.8 in
- Height - Maximum: 2794 mm / 110 in
- Dry Weight - Genset (maximum): 13970 kg / 30790 lb
