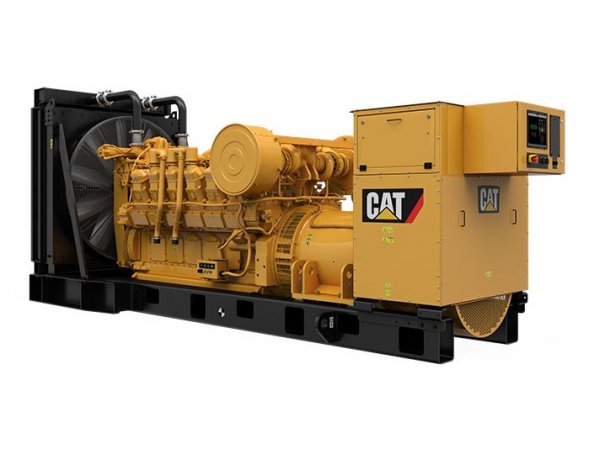

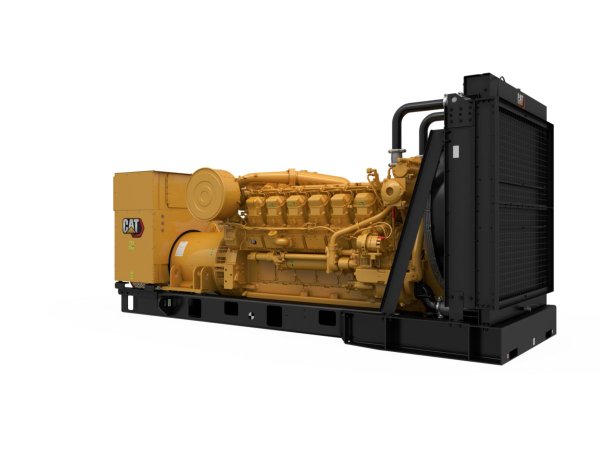

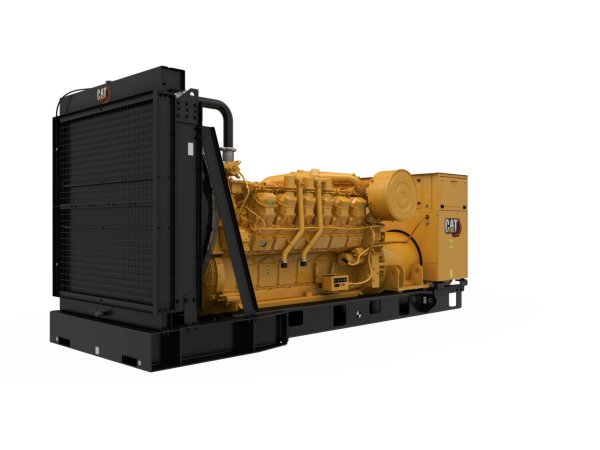

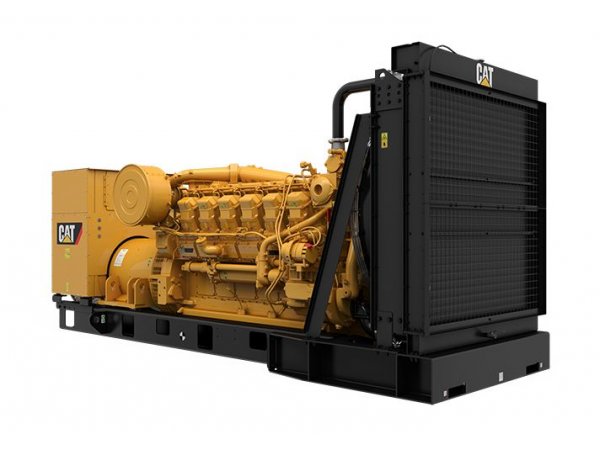

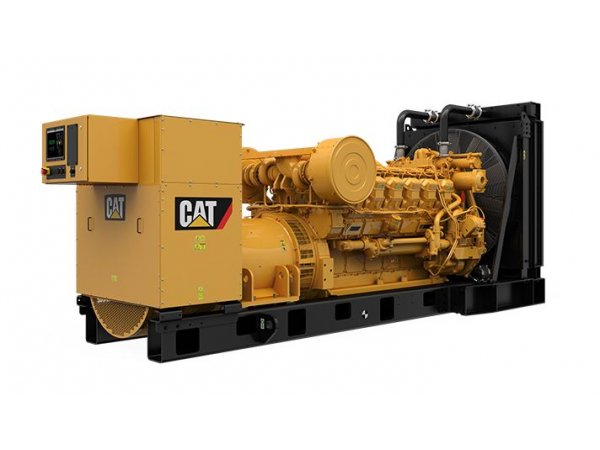

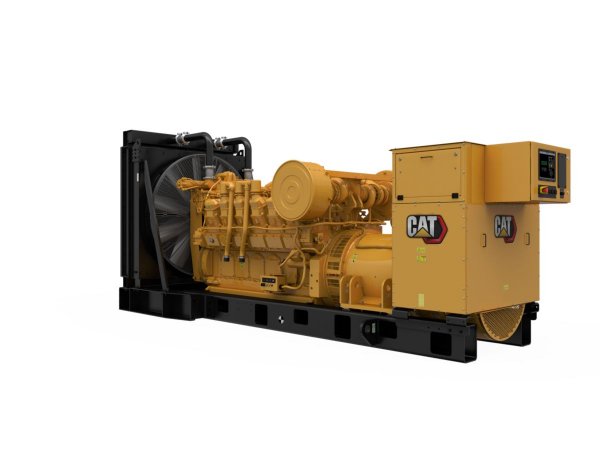

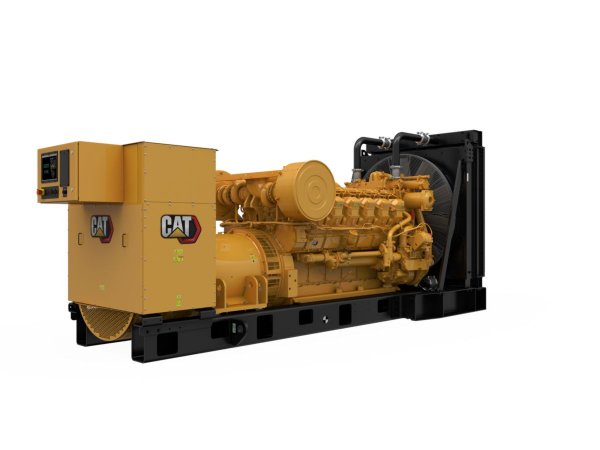

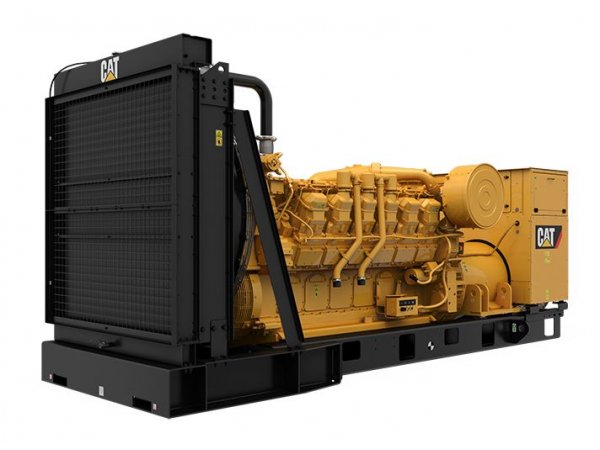

3512 (60 Hz) – GRUPOS GERADORES

  • ColeçãoColeçãoGRUPOS GERADORES
carousel
carousel
carousel
carousel
carousel
carousel
carousel
carousel
carousel
carousel
carousel
carousel

Descrição

Caterpillar is leading the power generation marketplace with Power Solutions engineered to deliver unmatched flexibility, expandability, reliability, and cost-effectiveness.

Informações Tećnicas

  • Minimum Rating: 890 ekW
  • Maximum Rating: 1250 ekW
  • Emissions/Fuel Strategy: Low Fuel Consumption

Mais informações

Generator Set Specifications

  • Minimum Rating: 890 ekW
  • Maximum Rating: 1250 ekW
  • Emissions/Fuel Strategy: Low Fuel Consumption
  • Voltage: 380 to 13800 Volts
  • Frequency: 60 Hz
  • Speed: 1800 rpm
  • Duty Cycle: Standby, Mission Critical, Prime, Continuous

Engine Specifications

  • Engine Model: 3512 TA, V-12, 4-Stroke Water-Cooled Diesel
  • Bore: 170 mm / 6.69 in
  • Stroke: 190 mm / 7.48 in
  • Displacement: 51.8 l / 3161.03 in³
  • Compression Ratio: 13.5:1
  • Aspiration: TA
  • Fuel System: Direct Unit Injection
  • Governor Type: Woodward

Generator Set Dimensions

  • Length – Minimum: 5456 mm / 214.8 in
  • Length – Maximum: 5556 mm / 218.8 in
  • Width – Maximum: 1975 mm / 77.8 in
  • Height – Maximum: 2367 mm / 93.2 in
  • Dry Weight – Genset (minimum): 10080 kg / 22210 lb
  • Dry Weight – Genset (maximum): 10270 kg / 22650 lb
